Princess Guard

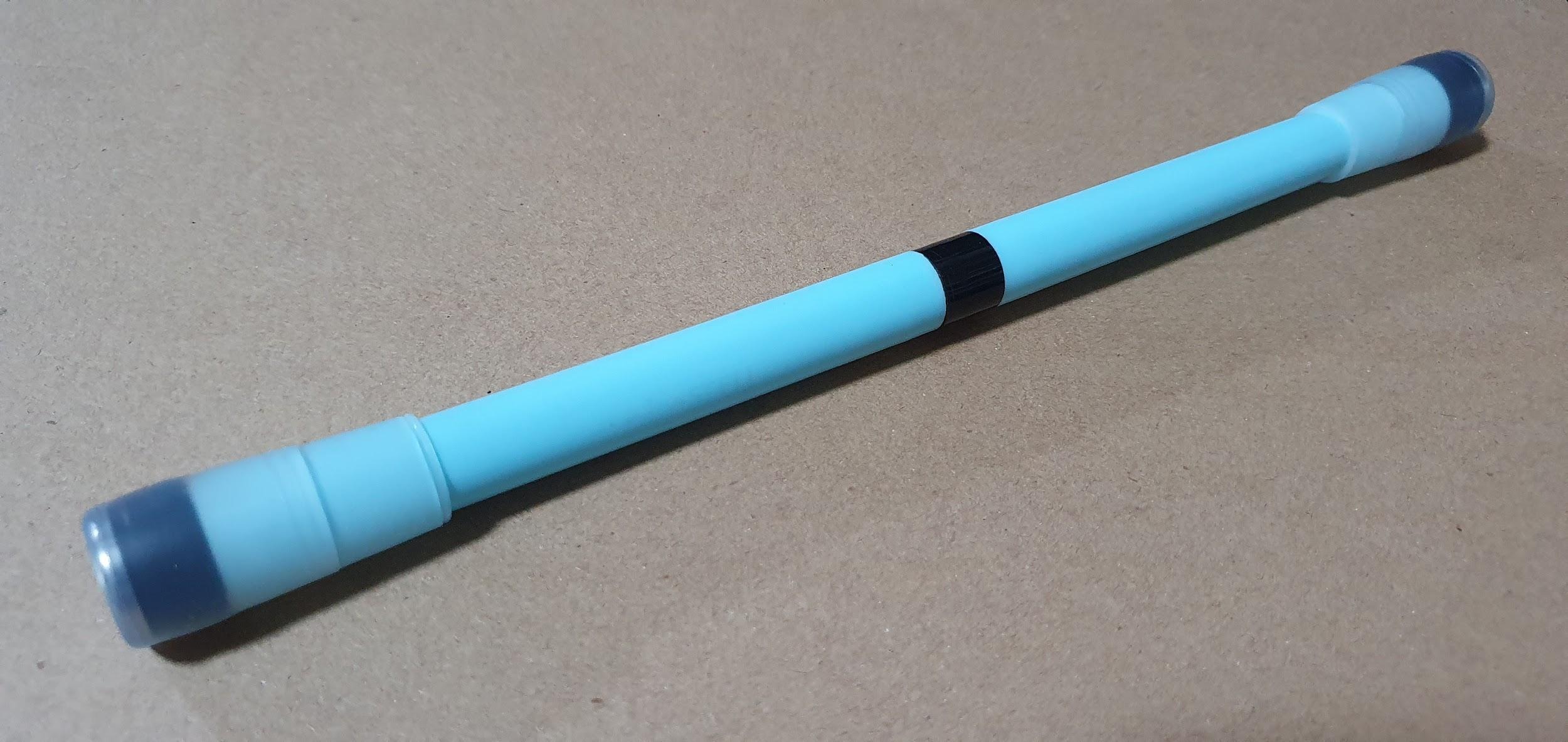

The Princess Guard is a double sided mod made by Clyde. It was made as a cheaper alternative of the Venus Gospel (Ennis Emboss)

Construction

Parts needed

List from Clyde's doc:

• x3 Faber-Castell Textliner (body)

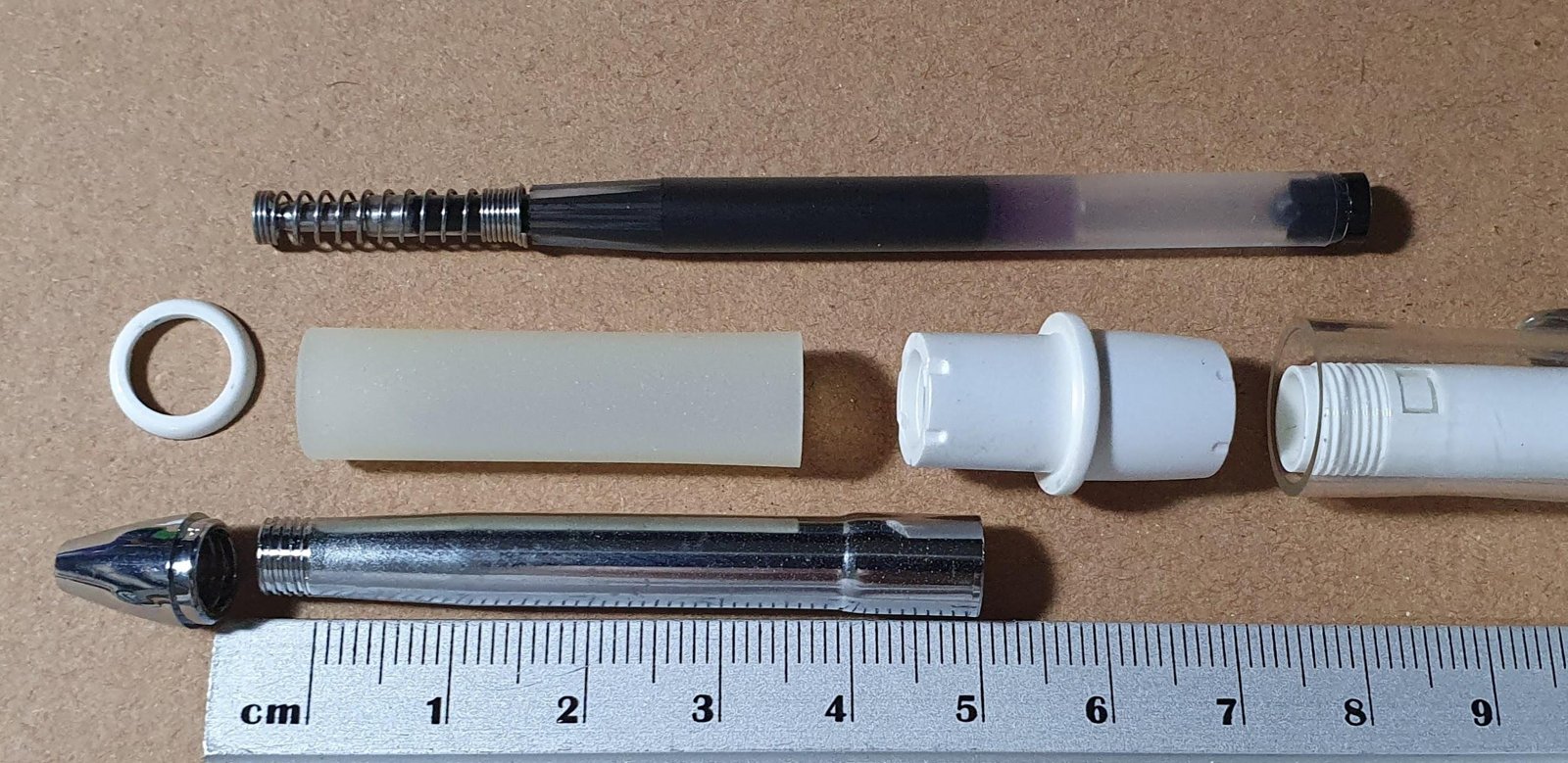

• x2 Grip G-Spec BP (Grip and metal tube)
• x1 Zebra Tect 2way (2 o-ring)
• x2 Dong-A Anyball (Grips)
• x2 Pilot SuperGrip (Grips)
• x1 Lil Hands (barrel)

Additional Items

• Tape

Text tutorial

Preparation

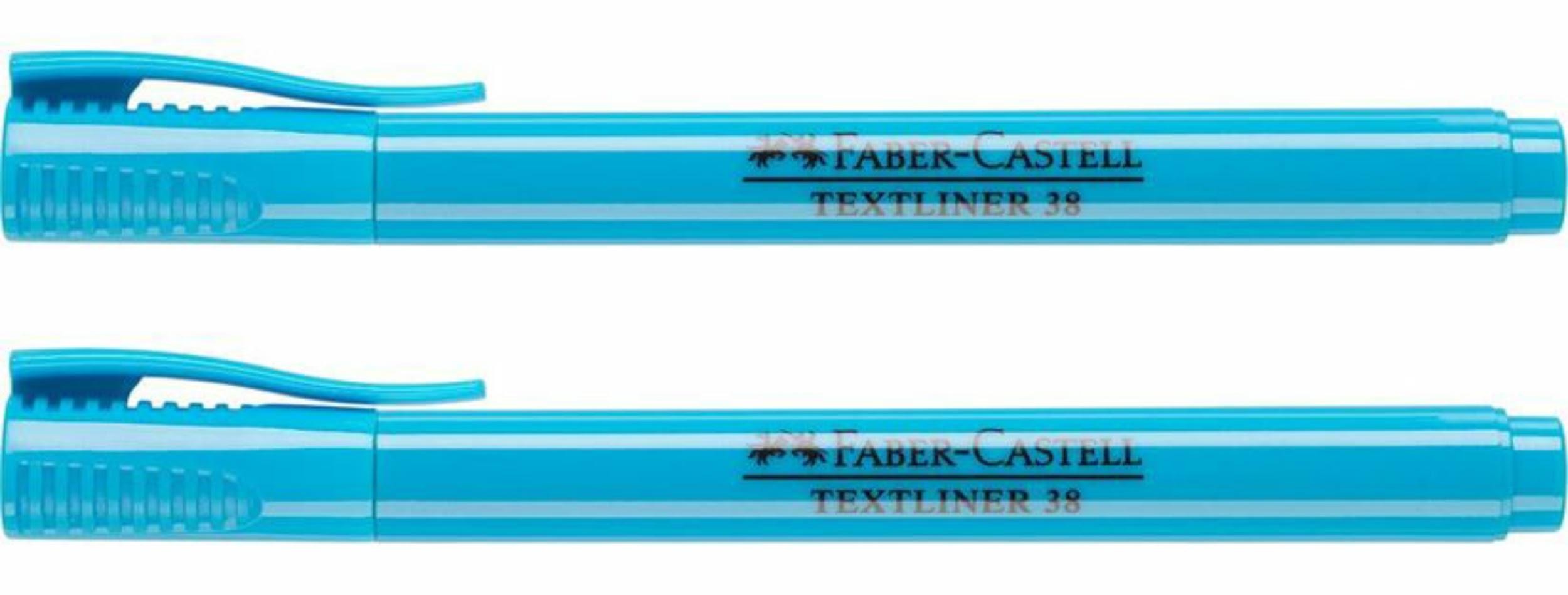

1. Cut the front part of 2 Faber-Castell Textliner.

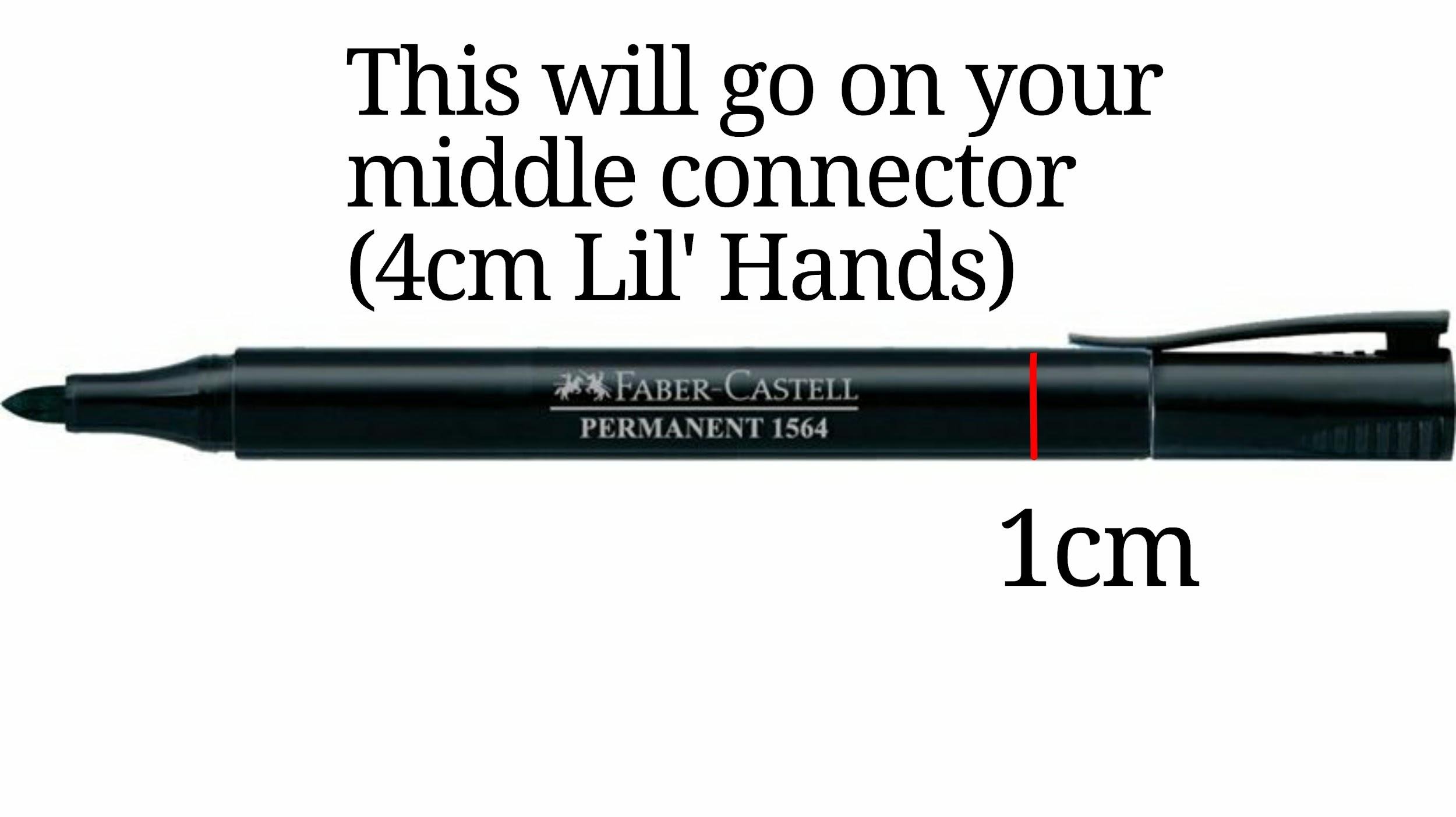

2. Cut 1cm of one of the Faber-Castell Textliner.

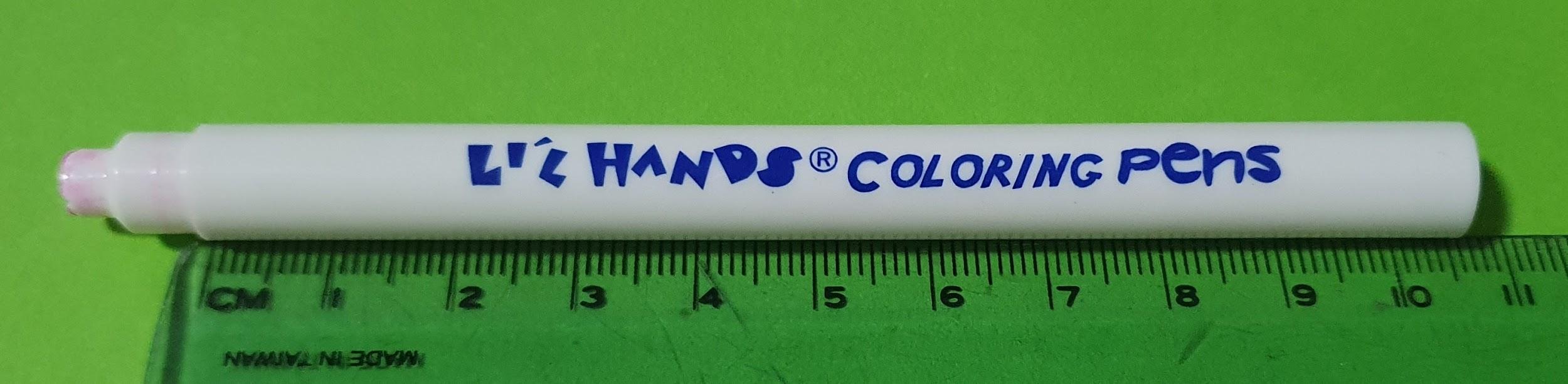

3. Cut 4~4.5cm from your Lil hand barrel.

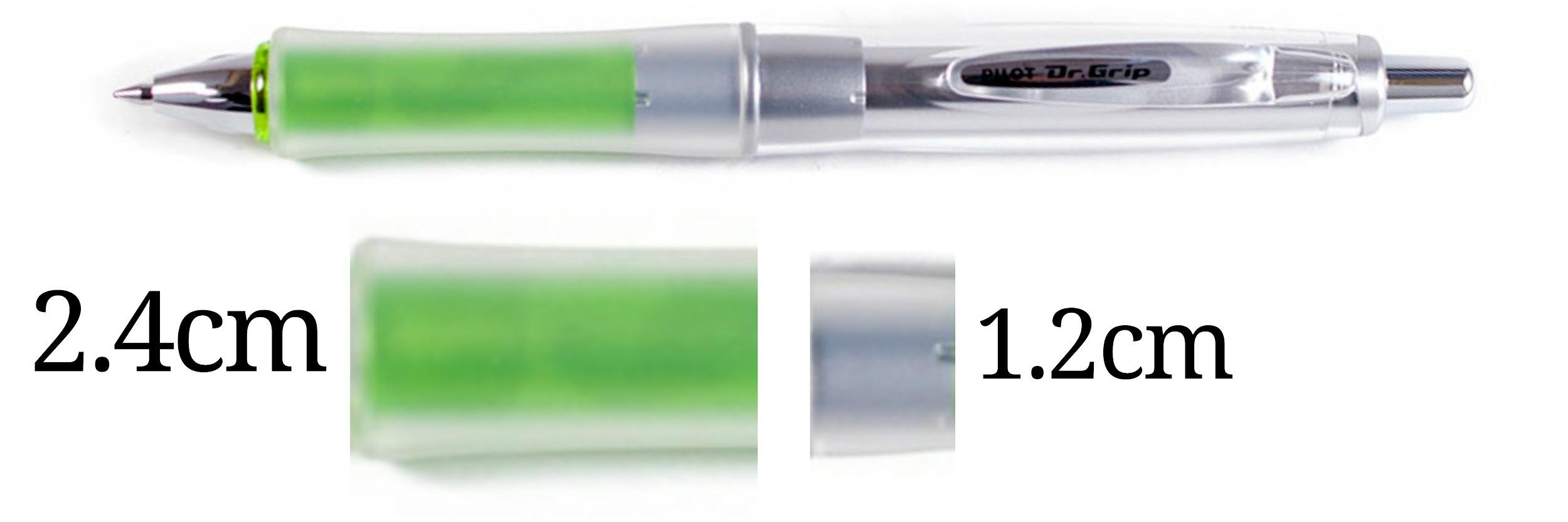

4. Cut 2.4cm of the Dr. Grip G-Spec MP grip from the front (the part with the inner lip), then separate the remaining grip in half (so you have one 2.4cm and 2x 1.2cm of g-spec grip). the middle part won't be used

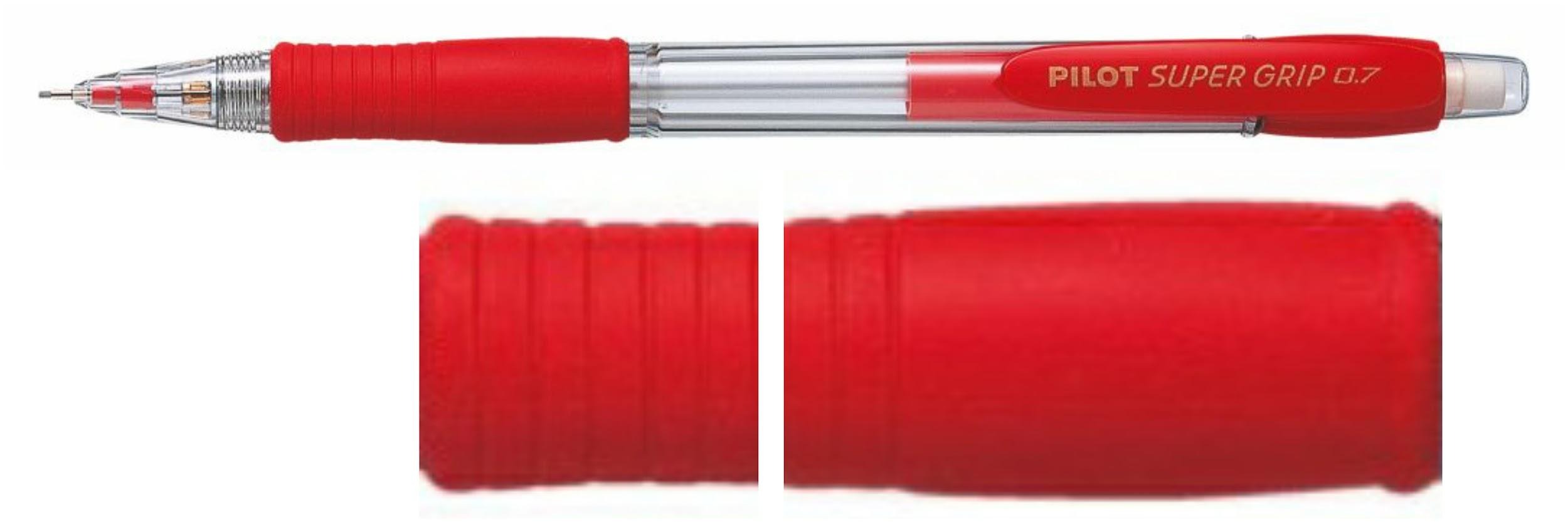

5. Cut your SuperGrip grips at 2 stripes from the flat part

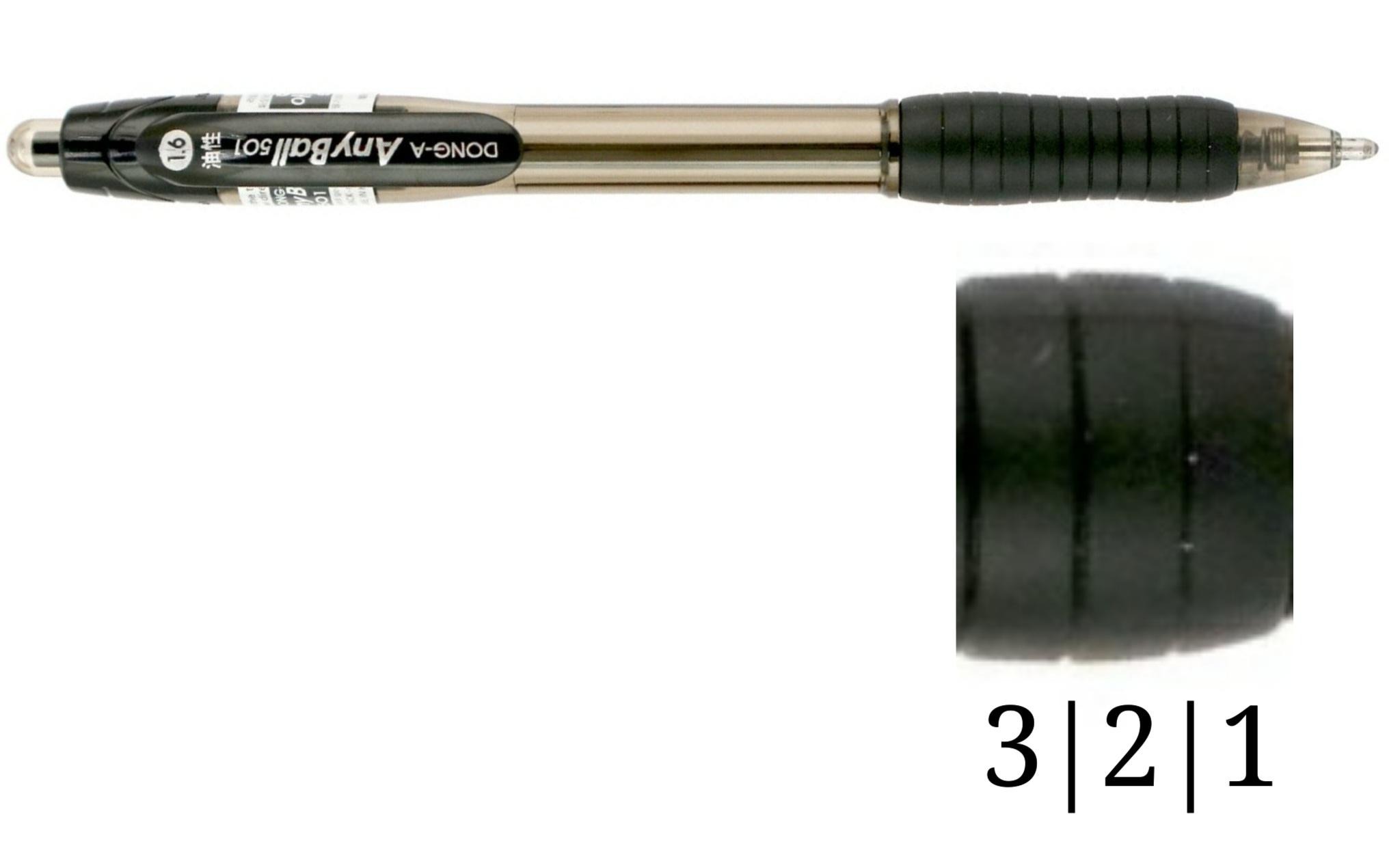

6. Cut 2x 3 stripes of Dong-A Anyball grips

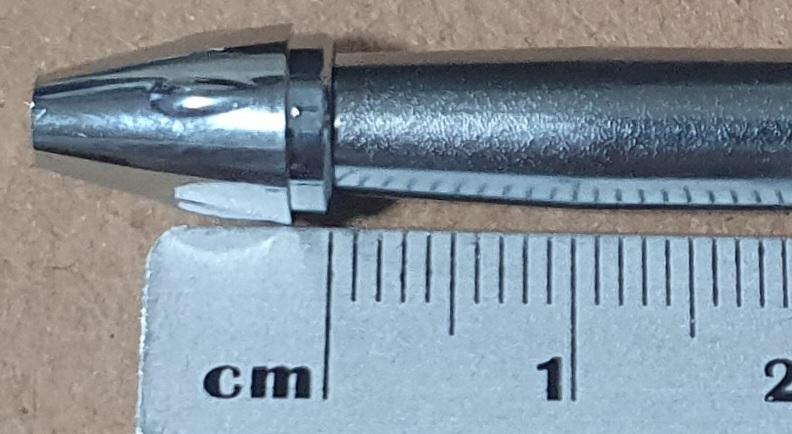

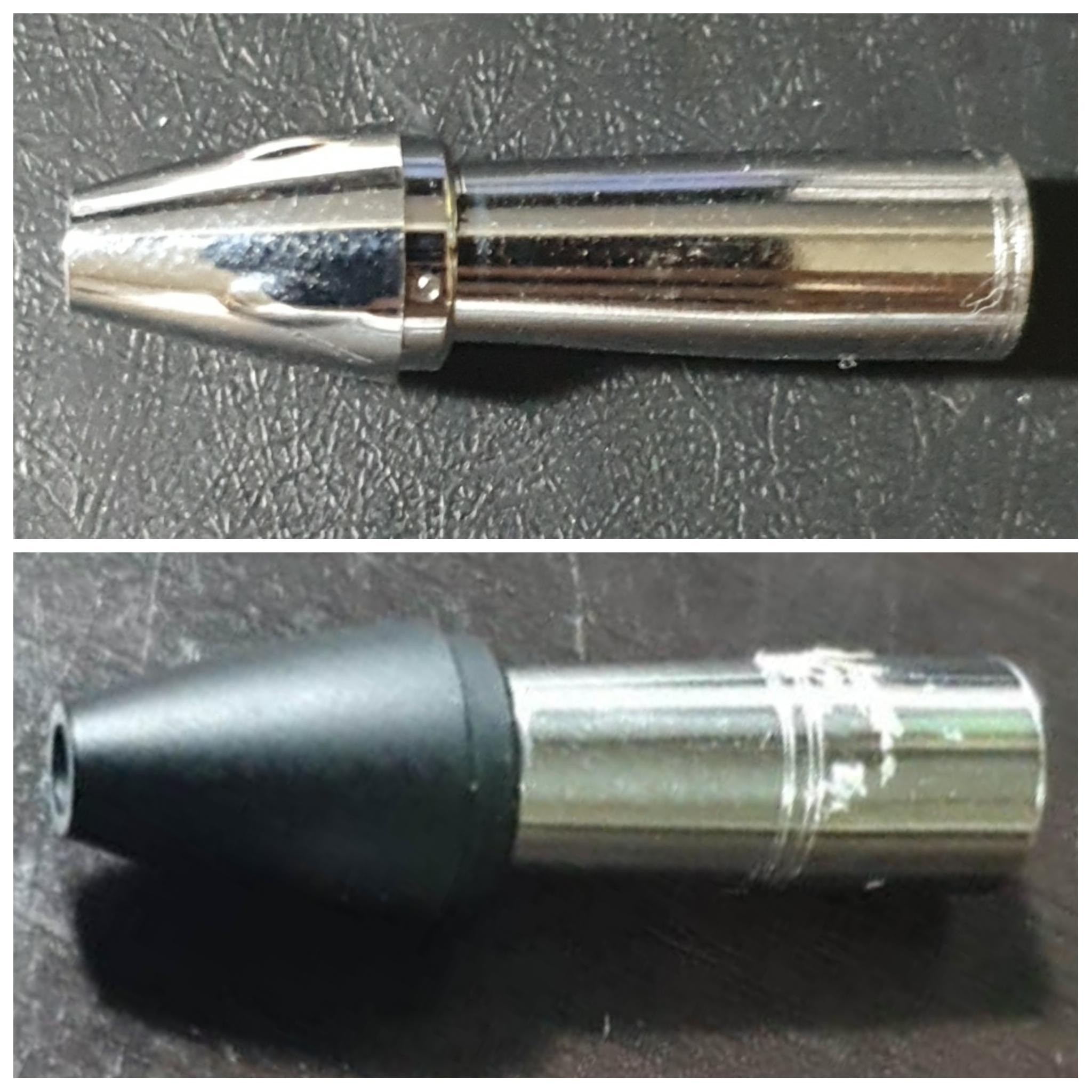

7. Cut 2x 1.9 from the front part of the Dr.Grip G-Spec BP.

Assembly

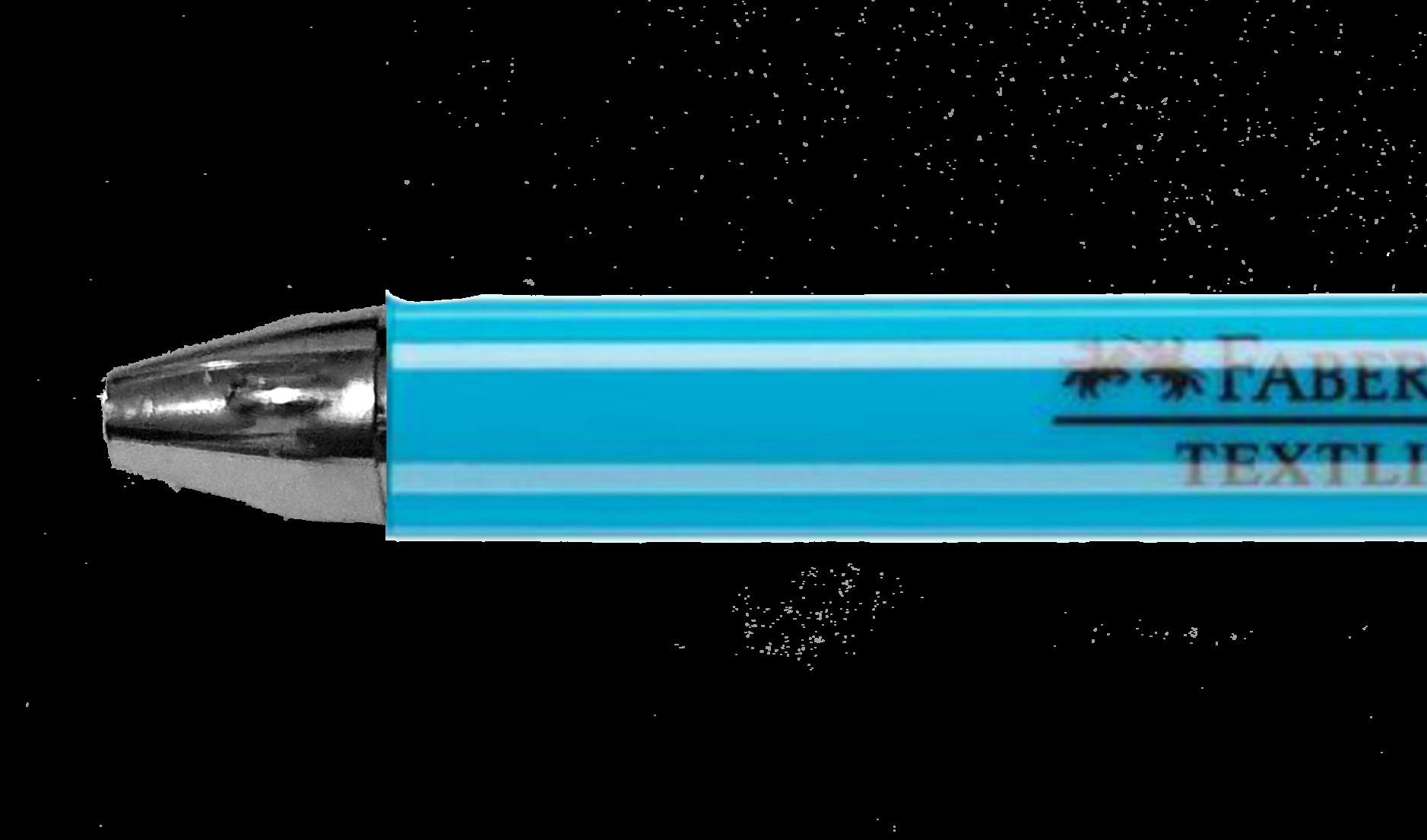

1. Screw the plastic G-spec tip on the cut front.

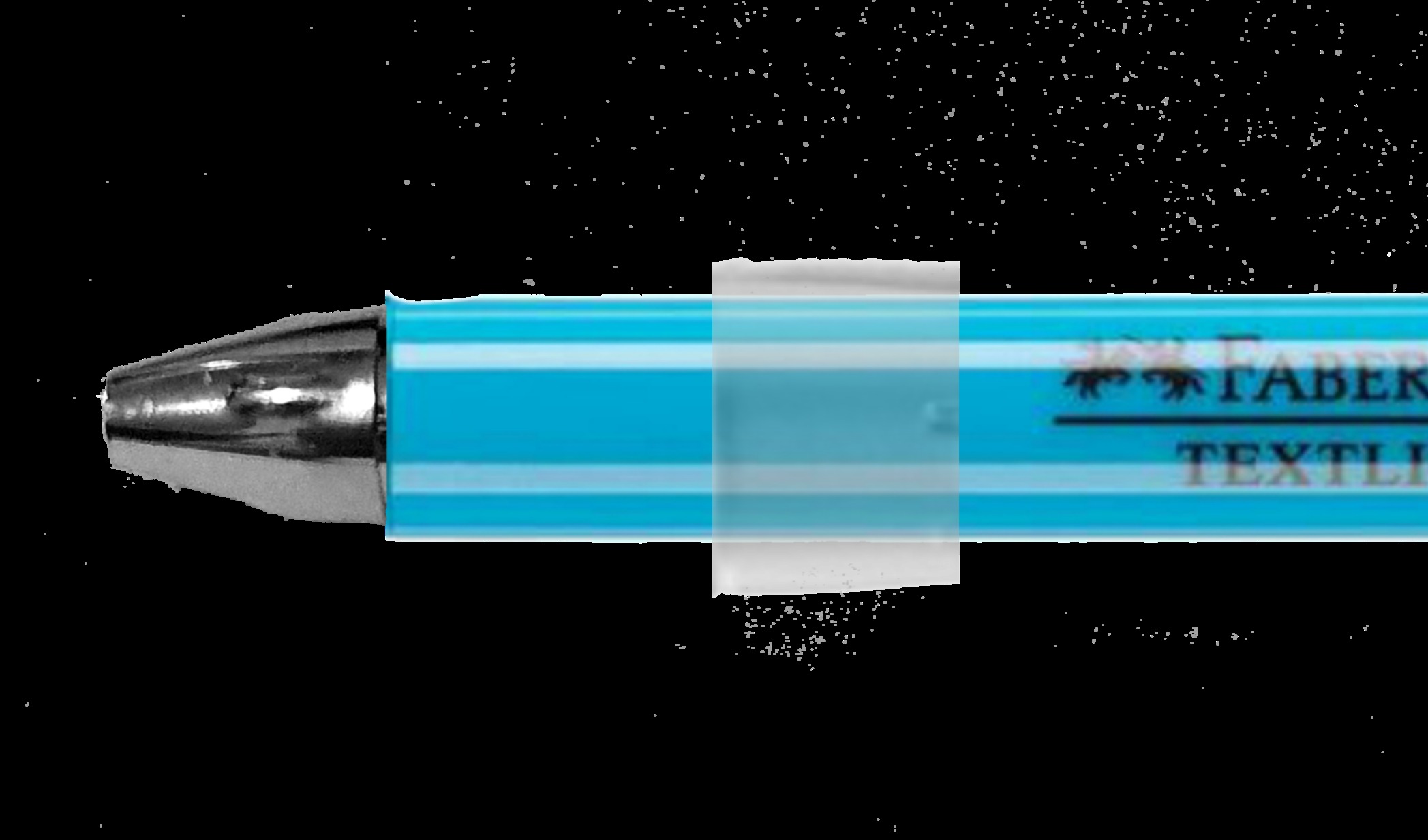

2. Put the tip package into the Faber-Castell Textliner front.

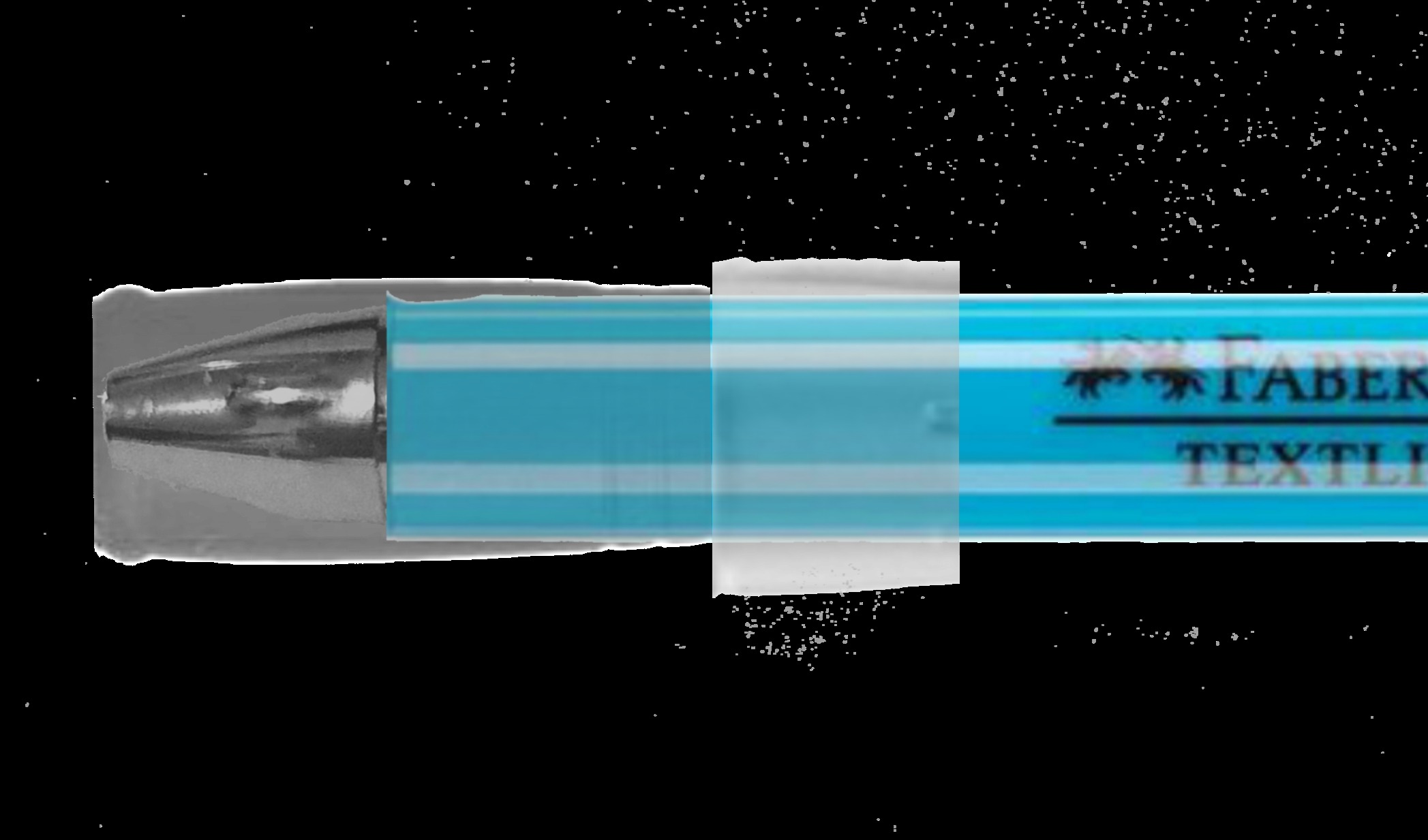

3. Put 3 blocks of anyball on the plastic tip. Then overgrip it with the remaining separated stripes of SuperGrip.

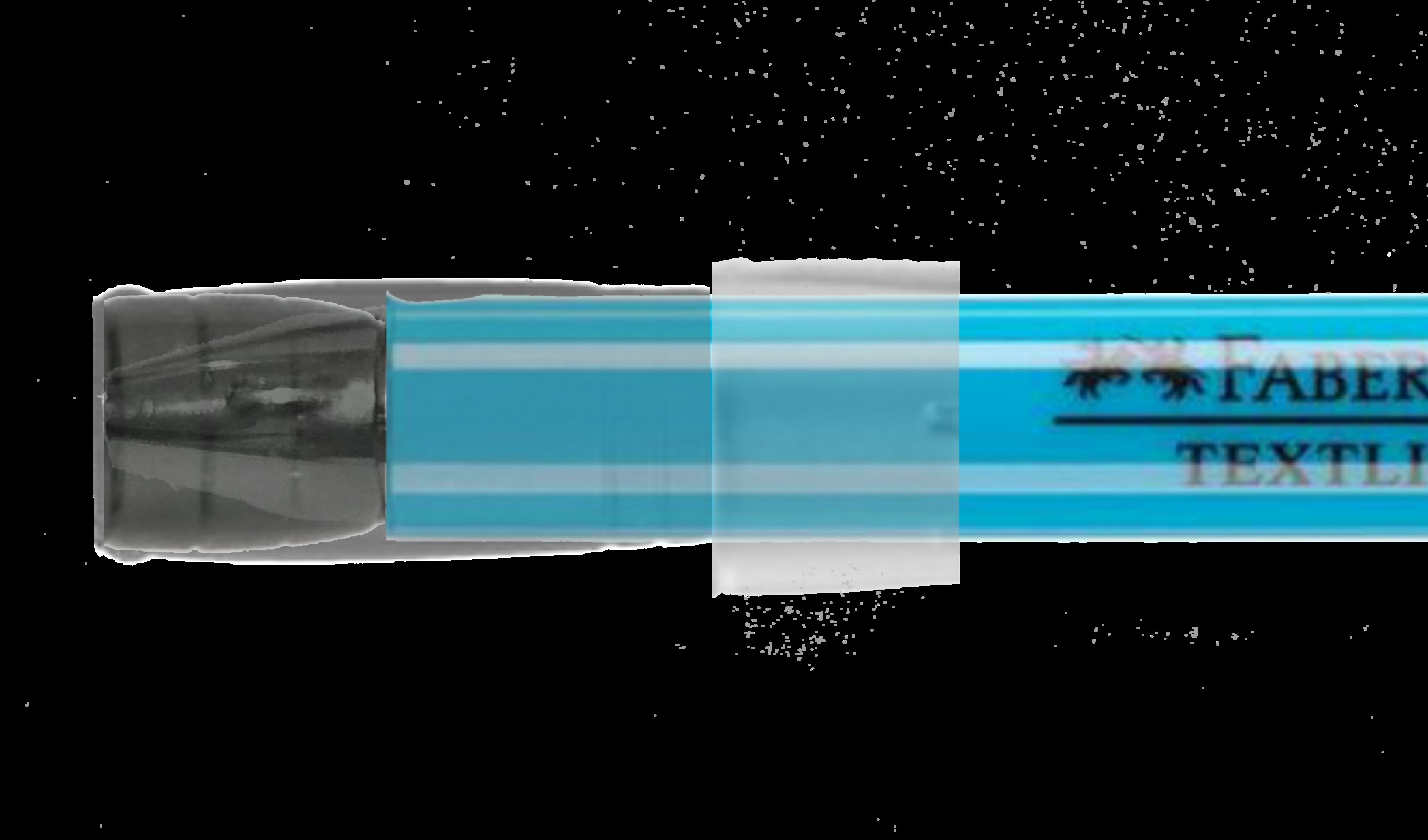

4. Add the grips in this order: 1.2cm of G-Spec MP (from the back of the grip) then SuperGrip grip (2 stripes first).

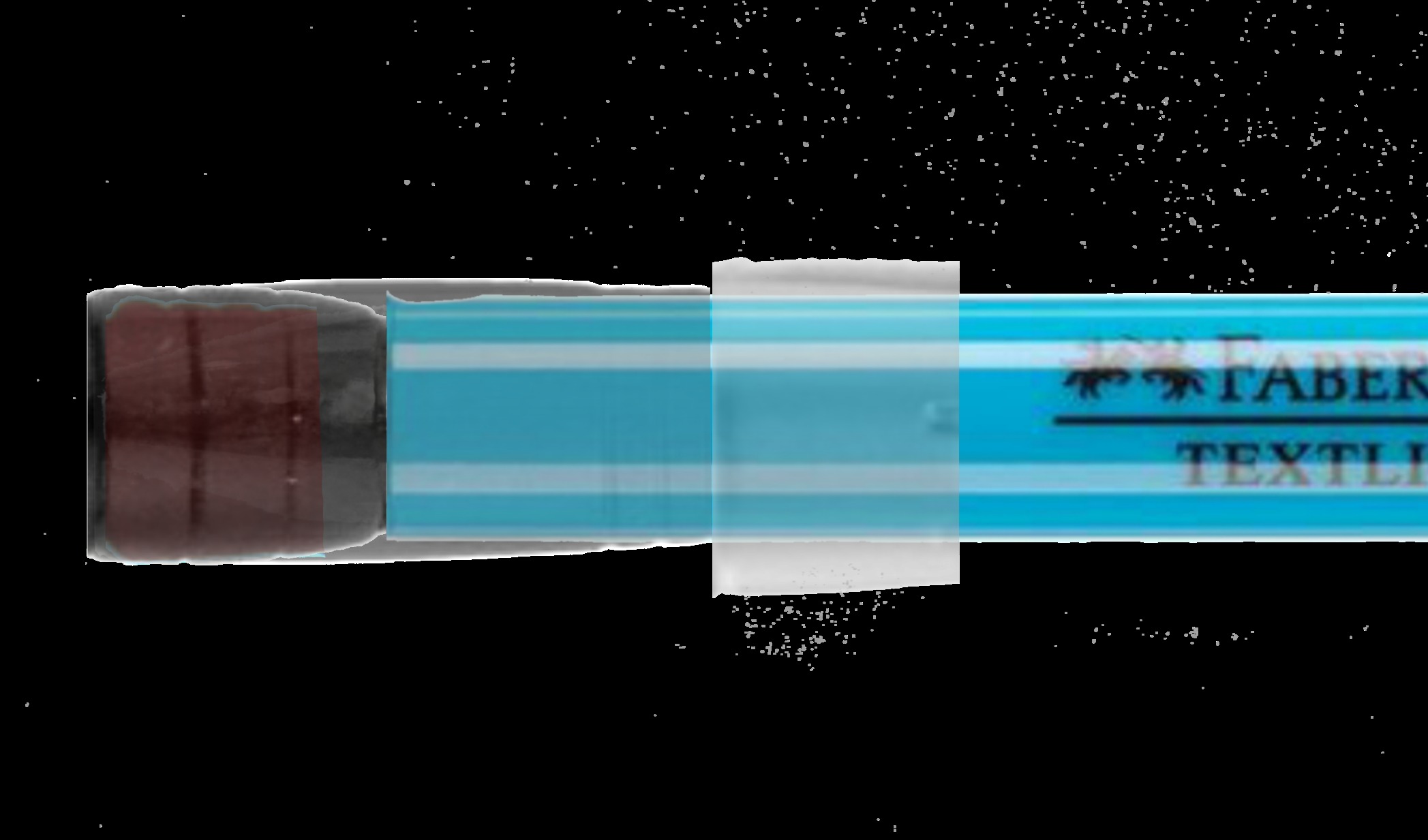

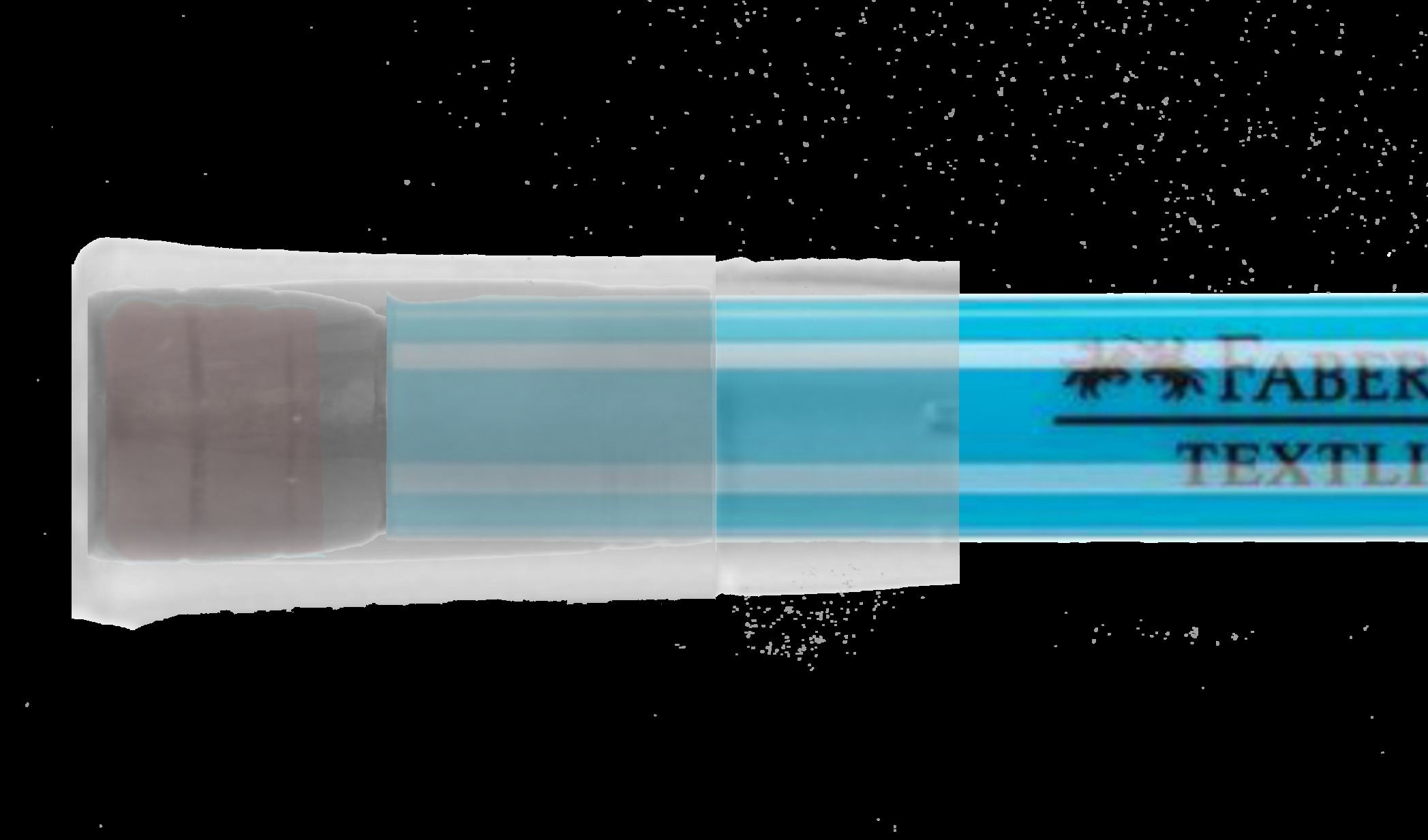

5. Overgrip the SuperGrip grip with the 2.4cm section of G-Spec MP grip.
6. Repeat
7. Put 1cm of Faber-Castell Textliner on the cut lil hands body.

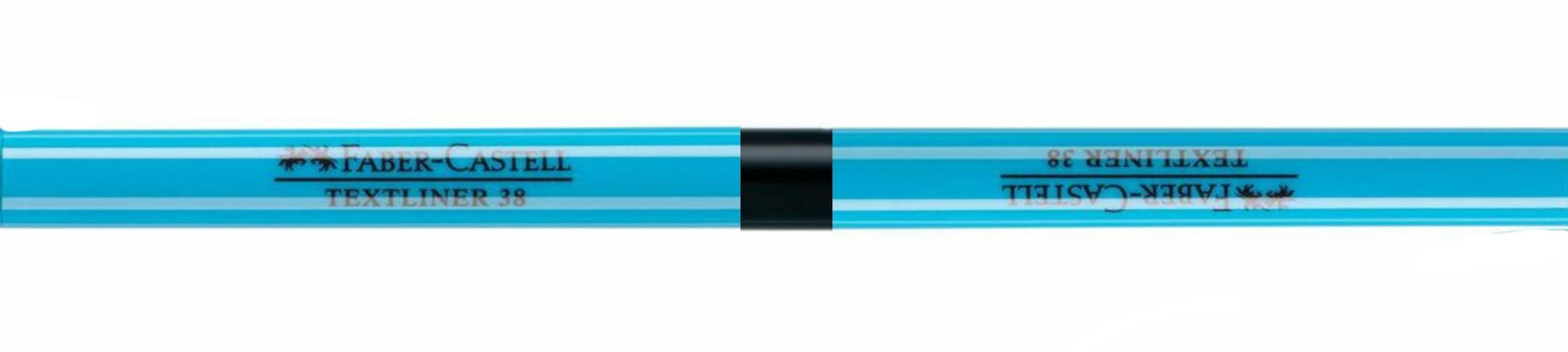

8. Connect everything.
