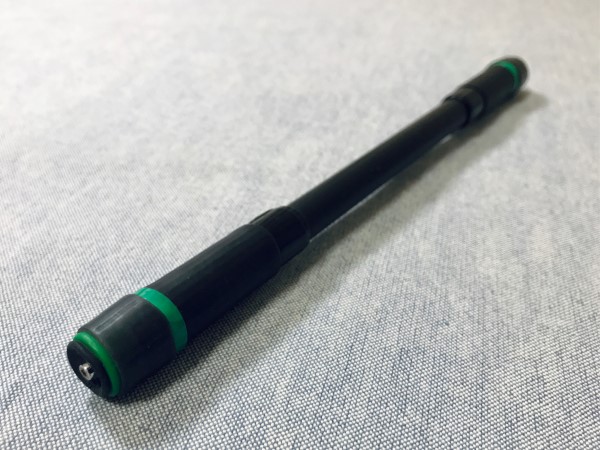

Nectalios

The Nectalios is a personal double sided mod of JEB spinner TUv4.

Construction

Parts needed

List from TUv4's's blog:

• x2 Nitoms Stalogy Ballpoint (Barrels)
• x2 Pilot Dr. Grip (tips)
• x2 Pentel Color Twin (big cap)
• x2 Signo DX (grips)
• x2 Pentel VFeel (grip)
• x2 Old Zebra Sarasa (grips)
• x1 Knock type Gel Ink Ballpoint pen
  • Can be subbed with Signo DX grip.

Additional items

• Tape

Text tutorial

1. Empty the Stalogy barrel and remove the CT cap clips.

Preparation

1. Hollow both CT caps.
2. Cut 2x 15 mm of Knock type grip.
3. Cut 2x 5 mm section of Signo DX.
4. Cut both Sarasa grips to approximately 14 mm.
5. Cut the metal nib of the Dr.Grip tips.

Assembly

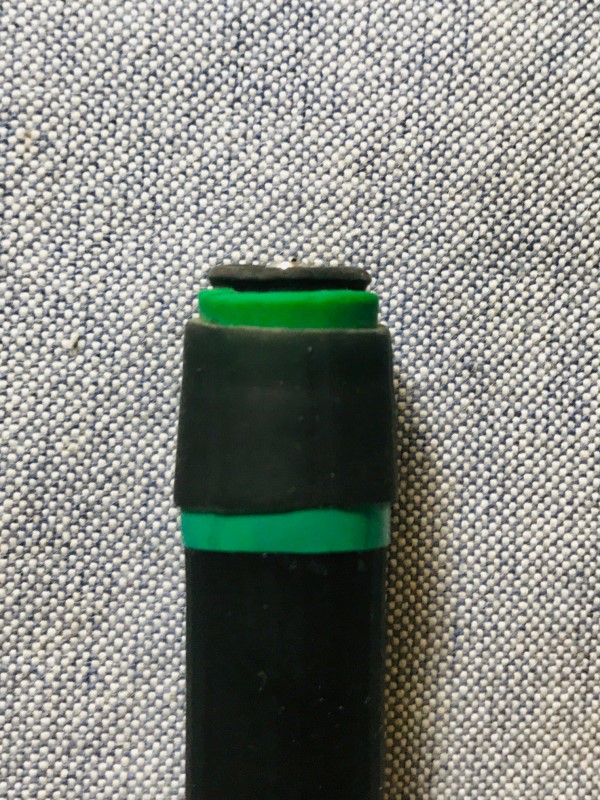

1. Place the whole VFeel grip on the CT cap.
2. Push the Dr.grip tip inside the VFeel grip (tip should face exterior).
3. Turn the knock type grip upside down and overgrip it with the Signo DX grip.
4. Place the last step inside the VFeel grip.
5. Add the Sarasa grip on the V-feel.
6. (Optional) Add a tape stripe next to the sarasa grip.




   Picture tutorial



7. Repeat on the other cap and connect to the Stalogy barrel.
