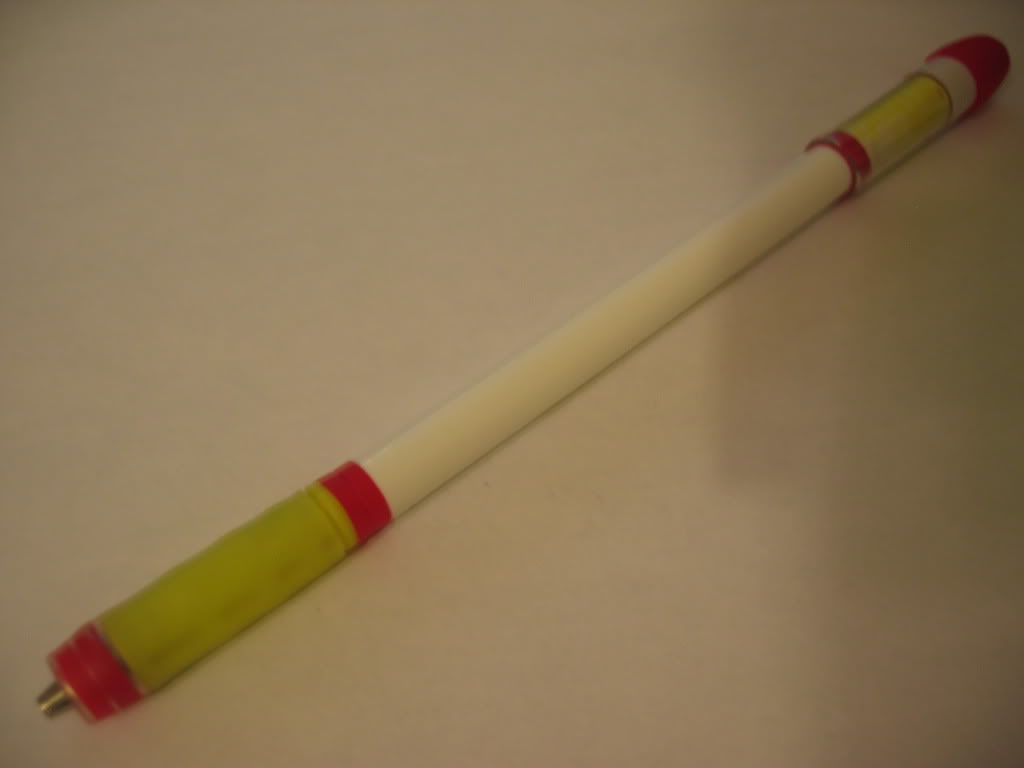

Nachoaddict SC

The Nachoaddict is a personal mod made by Nachoaddict.

Construction

Parts needed

List from the UPSB V3:

• 1x G3 (cap)
• 2x Signo Broad (Tips)
• 1x Pentel Hybrid Gel Grip (tip)
• 1x Bic Round Stic (barrel)
• 1x Crayola SuperTips (body)
• 1x Pilot AirBlanc (grip)
• 1x Dong-A Anyball (grip)
• 1x Pentel Color Twin (small cap)

Additional Items

• Tape

Text tutorial

Preparation

1. Cut 5 mm from the front of the Supertip barrel.
2. Cut the clip of the G3 cap, and sand the nub.
3. Cut 4 blocks and 2x 2 blocks of Anyball grips.
4. Cut 4.8 cm from the back of the big round stick barrel.

Assembly

Front side

1. On the Bic round stick barrel, add in this order: 2 blocks of Anyball grip, a full HGG grip (ring side first), and the base of a signo tip inside the HGG grip.
2. Add 2 blocks of Anyball on the Signo tip and overgrip the front with a full Airblanc grip (Ring of the HGG grip shouldn't be covered).

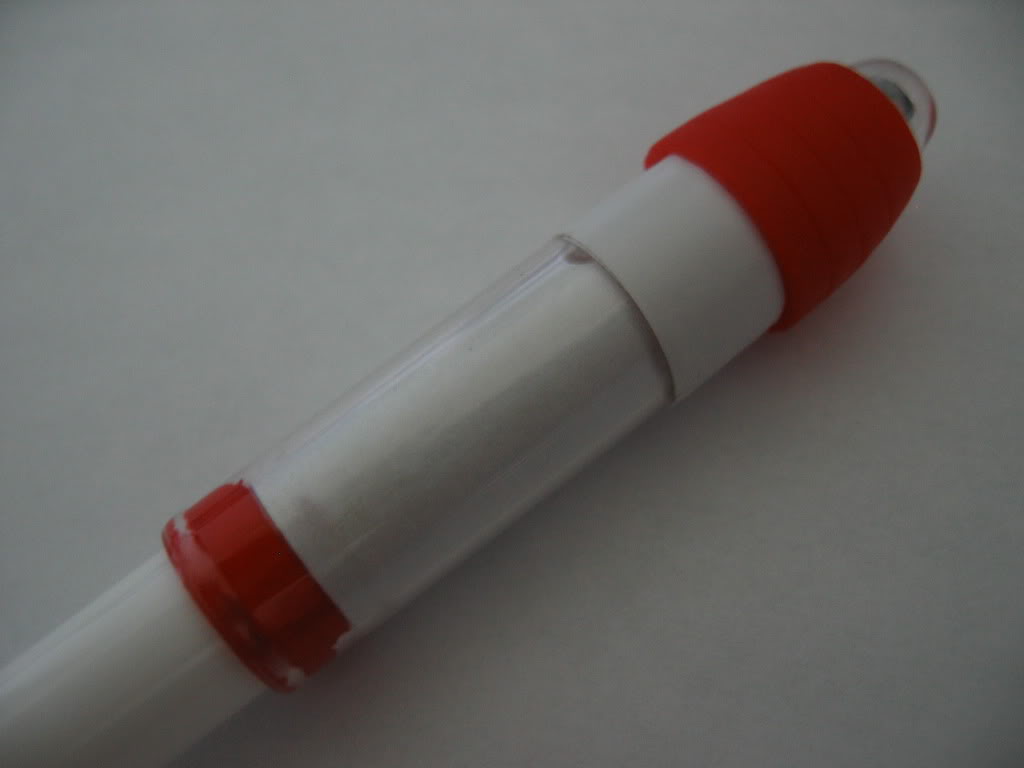

Cap side

1. Place the Signo tip on the small CT cap.
2. Place the small CT cap and Signo tip into the G3 cap together with the retained 5 mm SuperTips front section.
3. Add 4 blocks of Anyball grip on the G3 cap.
4. Wrap tape around the SuperTips barrel as needed and attach the G3 cap to its front end. Fit the Bic/HGG front assembly onto the rear end of the SuperTips barrel.
