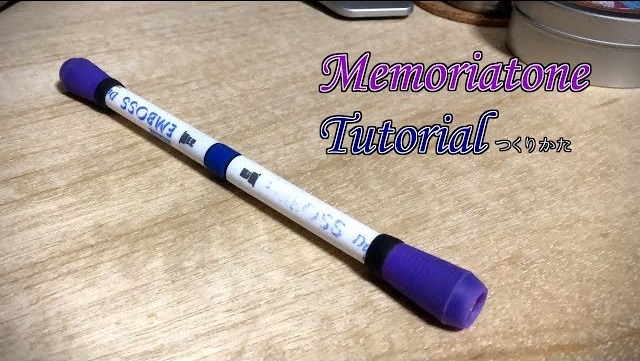

Memoriatone

The Memoriatone is a double-sided mod made by JEB spinner VAIN. It is also called "VAIN Emboss".

Construction

Parts needed

Parts list from the video below:

• x2 Tsukineko Emboss body
• x2 Pilot Dr. Grip (tips)
• x1 Spinpro (2 grips)
• x1 Pilot G3 (grip)
• x1 Uni-Ball Signo DX (Grip)
• x1 Pentel Color Twin (barrel)
• decorative grip (2 blocks of Dong-A Anyball are used in VAIN's one)

Text tutorial

Preparation

1. Empty both Emboss markers and cut each barrel to 9 cm from the back.
2. Cut 4 cm of your Color Twin barrel from the back.
3. Cut two 1-stripe pieces of Pilot G3 grip.
4. Cut your Uni-Ball Signo DX grip to 1 cm.
5. Cut two 8 mm lengths from the leftover of Uni-Ball Signo DX grip.
6. Prepare decorative Anyball grip sections as desired.

Assembly

1. Place the decorative grips on the Tsukineko Emboss, then add the Spinpro grip, leaving enough overhang to hold the internal grip and tip.
2. Inside the Spinpro grip, add the 0.8 cm of Uni-Ball Signo DX grip, then insert the Dr. Grip tip backwards.
3. Repeat on the other side.
4. Place the 1 cm Signo DX section on the Color Twin connector, with one G3 grip ring on each side.
5. Connect everything using the Color Twin barrel as centerpiece.

Video tutorial

Video tutorial by Vain.
