K7 Hybrid

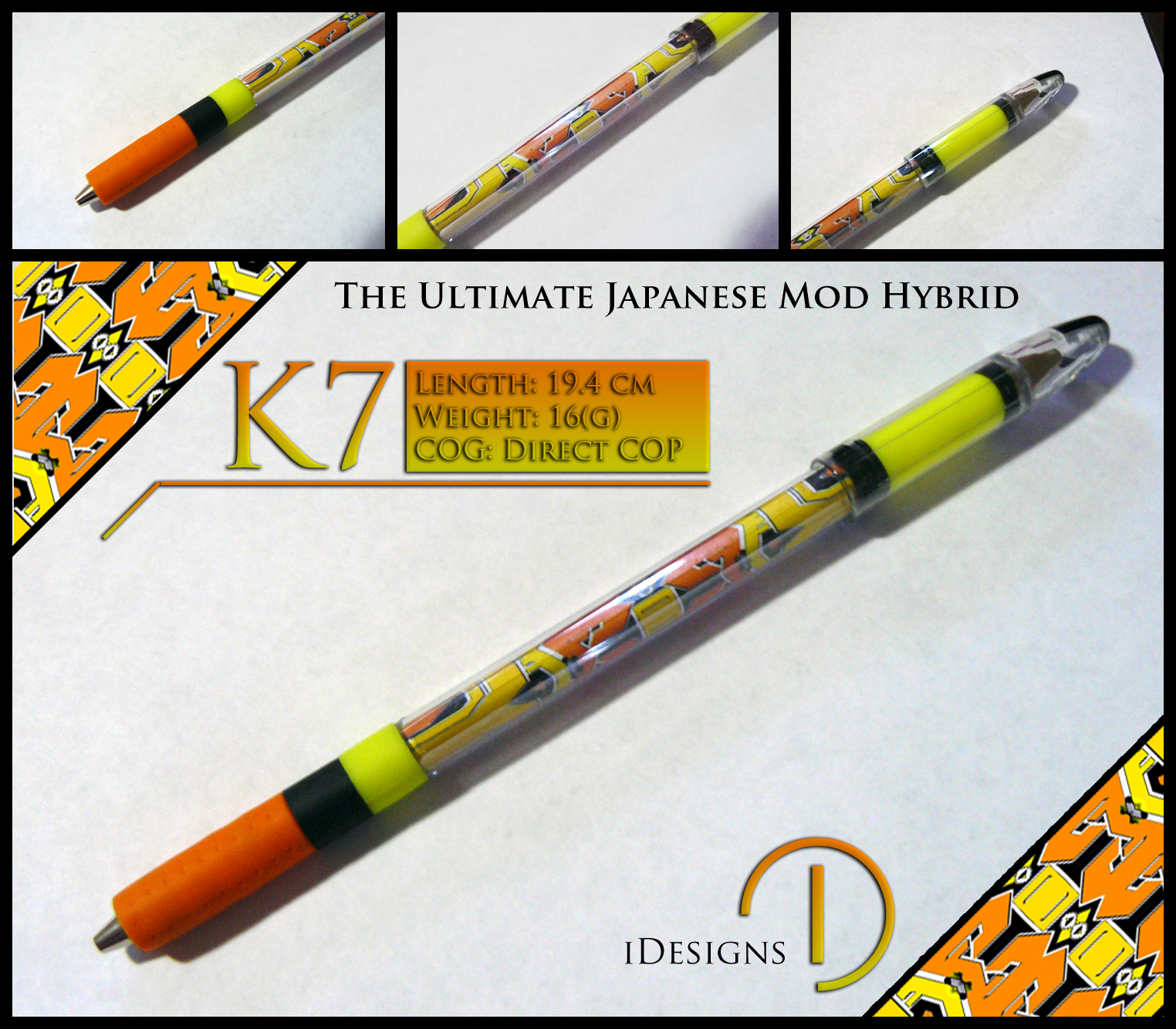

The K7 Hybrid is a single sided mod made by Orctupus. This mod is a hybrid between a SEVEN g3 and a KUzu G3

Construction

Parts needed

List from UPSB v3:

• 1x G3 (barrel and plastic tip)
• 1x Signo DX (grip and tip)
• 1x Signo Broad (grip and tip)
• 1x Pentel Hybrid Gel Grip (tip)
• 1x Hyperjell (cap and grip)
• 1x Dong-A Anyball (grip)
• 1x Jimnie (Cap)

Additional Items

• Tape
• An insert




  Original insert




Text tutorial

Preparation

1. Remove the clip of the Jimnie cap.

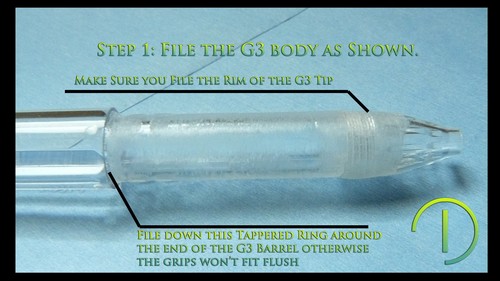

2. Prepare the G3 barrel by filing the square and front bump.






3. Cut 0.9 cm of Hyperjell grip.
4. Cut 1cm and 0.3cm of Signo Broad grip.

Assembly

Front side

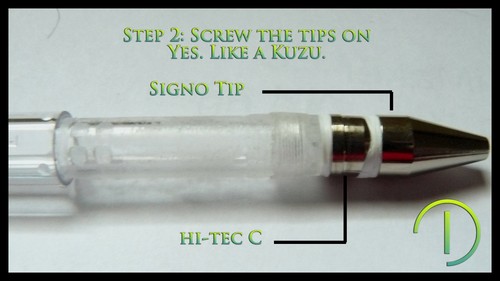

1. Stack the Hi-tec grip on the plastic G3 tip, then stack the signo tip onto the Hi-tec tip (Add teflon tape between each tip to make the assembly stable).

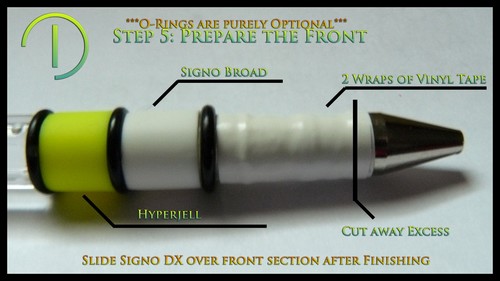

2. Add 0.9cm of HyperJell and 1cm of Signo Broad grip on the front of the G3 barrel.
3. Add two wraps of Vinyl tape on the ungripped part of the g3 front (should stop at the base of the signo tip)






4. Add the signo dx on the front of the G3 barrel.

Cap side

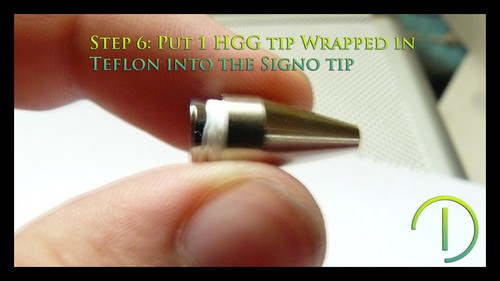

1. Put the HGG tip inside the signo tip (wrap some teflon tape onto the HGG tip). Put it inside the Jimnie cap.






2. Put 0.3 cm of Signo broad tip then the remaining Hyperjell inside the jimnie cap.






3. Add tape on the G3 body then connect it to the Jimnie cap.

Video Tutorial

Video Tutorial by Super Nova.
