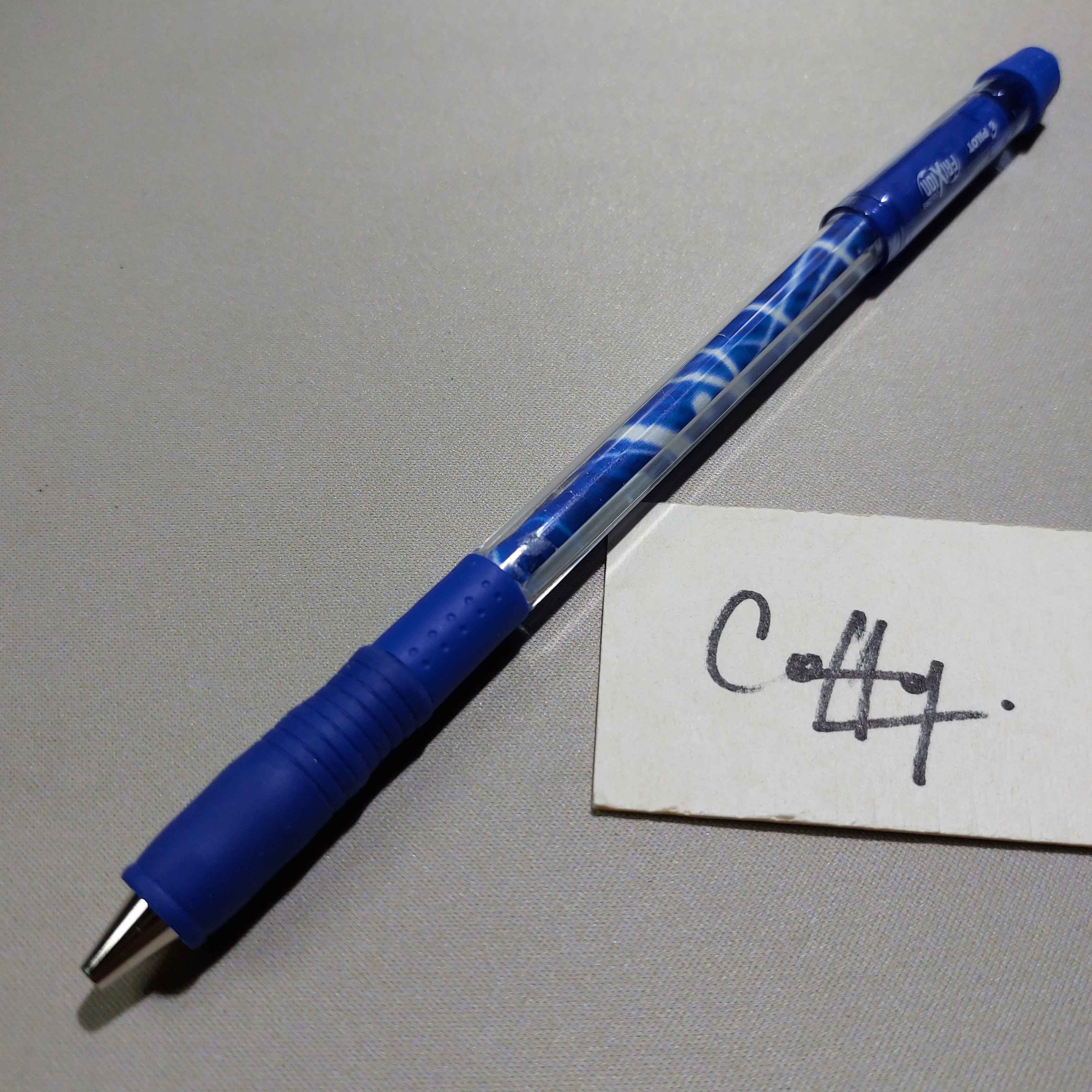

G-COLORS

The G-COLORS is a personal mod made by Coffy.

Construction

Parts needed

List from Penmodding.pm :

• 1x G3 (barrel, grip, plastic tip, and Rubber stopper in the cap)
• 1x Signo DX (tip and grip)
• 1x Pilot Frixion Colors (cap)
• 2x Pentel Hybrid Gel Grip (2 tip and 1 grip)
• 1x Supergrip ballpoint (grip and tip)

Additional Items

• Tape
• An insert

Text tutorial

Preparation

1. Cut 1cm and 1.6cm of Signo DX grip.
2. Prepare the G3 barrel by filing the round and square bumps.
3. Cut the G3 grip verticaly.

Assembly

Front side

1. Stack the tips in this order: G3 tip, Supergrip tip (with G3 rubber stopper), and Signo tip.
2. Add 1.6cm and the whole Supergrip grip on the G3 front (Side with stripe first).

Cap side

1. Remove the plastic piece inside the Frixion cap.
2. Put the HGG tip then the sliced G3 grip inside the HGG grip.
3. Put in this order: The HGG tip and the last step inside the Frixion cap.

Add tape on the G3 body, then connect it to the Frixion cap.

1. Put 1cm of Signo DX grip on the Frixion cap.
