Coffeelucky MX

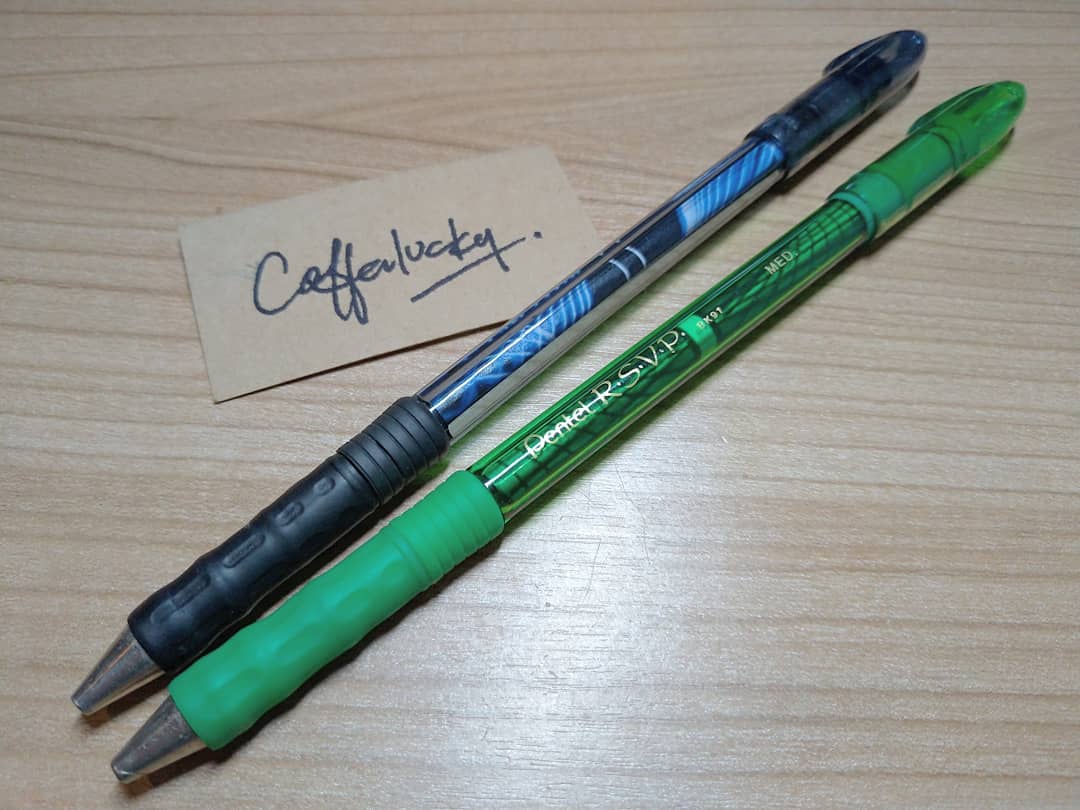

The Coffeelucky MX is a Single Sided mod created by THPSC spinner Coffy.

Construction

Parts needed

Parts and construction from Penmodding.pm.

• 1x RSVP (Everything)
• 1x Pilot Supergrip (ballpoint version; grip and tip)
• 1x Pentel Hybrid Gel Grip (grip)
• 1x Pilot G3 (Metal tip)

Additional Items

• Tape
• An insert

Text tutorial

Preparation

1. Remove the RSVP cap clip.
2. If you want the mod to write from the rear, drill a hole in the RSVP backplug for the ink-tube nib.
3. Cut a six-ring section of SuperGrip grip.

Assembly

1. If reversing the ink tube, pass its nib through the backplug hole and refit the backplug.
2. Remove the RSVP grip and insert it into the cap. Attach the cap to the rear of the barrel.
3. Wrap tape around the RSVP front and its tip, then fit the six-ring SuperGrip section.

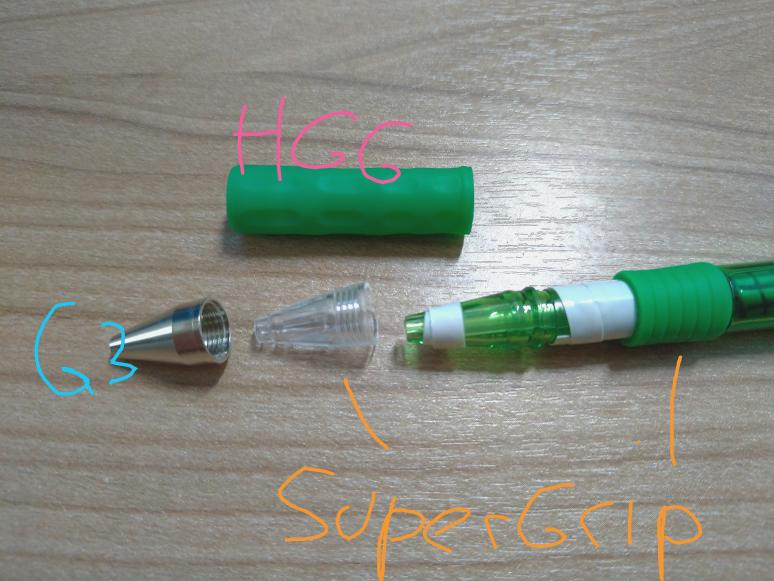

4. Stack the SuperGrip ballpoint tip over the RSVP tip, then fit the metal G3 tip over the SuperGrip tip.






5. Cover the tip stack with the HGG grip. Add an optional insert to the barrel.

Video tutorial

Video tutorial by Coffy.
