CeNti's G3

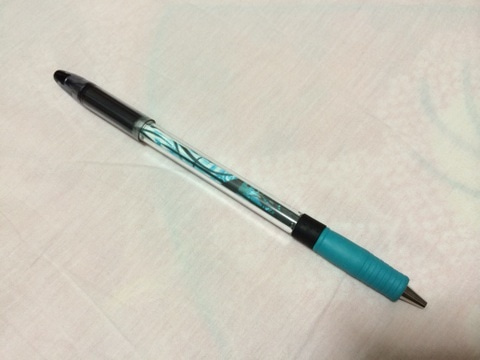

CeNti's G3 is a serie of personal mod made by JEB spinner CeNti.

Construction: CeNti's blog version

Parts needed

List from CeNti’s creator tutorial:

• 1 Pilot G3 (Barrel and plastic tip)
• 1 Metal Pilot G3 (Tip)
• 1 Zebra Jimnie (Cap)
• 1 Zebra Hyper Jell (Grip)
• 2 HF pens (Tips; the creator also permits Yes Hybrid tips)
• 1 Old Pentel Hybrid (Tip)
• 1 Uni-Ball Signo (Grip)
• 1 Pilot Supergrip (Grip)

Additional Items

• Tape

Text tutorial

1. Prepare the G3 barrel by removing the grip and filing its protrusions. File the protruding section of the plastic G3 tip so the tips nest together.
2. Cut a 1 cm Signo grip section and fit it to the front of the barrel.
3. Stack the front tips in this order, from barrel outward: plastic G3, metal G3, HF. Tape the stack securely, keeping the tape far enough back to remain concealed by the grip.
4. Fit the SuperGrip grip over the front assembly.
5. Remove 2 mm from the rear end of the Hyperjell grip; keep the longer piece.
6. Insert an HF tip and then an old Hybrid tip into the front opening of the Hyperjell grip, seating the tip to its marked line. Push this assembly into the Jimnie cap.
7. Tape the rear of the G3 barrel until the Jimnie cap fits securely, then attach it. CeNti omits the G3 backplug, but notes that it may be retained according to preference.

Construction: Ponkotu's blog version

Parts needed

List from Ponkotu's blog:

• 1x G3 (barrel and plastic tip)
• 1x Signo DX (tip and grip)
• 2x Pilot Hi-Tec-C (tip)
• 1x Pilot Supergrip (grip)
• 1x Zebra Hyper Jell (grip and cap)
• 1x Platinum Gel Roller (Tip)
• 1x Dong-A Anyball (grip)
• 1x Pentel Hybrid Gel Roller (tip)

Additional Items

• Tape
• An insert

Text tutorial

Preparation

1. Cut the clip of the HyperJell cap.
2. Prepare the G3 barrel by filing the square and front bump.
3. Cut 0.5cm of Signo DX grip.
4. Cut 3 blocks of Anyball grip.
5. Cut 2mm of Hyperjell grip.

Assembly

Front side

1. Stack the tips in this order: G3 tip, Hitec, Gel roller, and the other Hitec (wrap some tape to make it stable).
2. Put the grips on the G3 front in this order: 5mm of Signo dx grip, a whole supergrip grip (flat side first), and 3 blocks of Anyball grip.

Cap side

1. Put the HGR tip inside the rounded side of the Hyperjell grip.
2. Push the Hyperjell grip into its cap (round side first).
3. Add tape on the G3 body, then connect it to the Hyper Jell cap.
