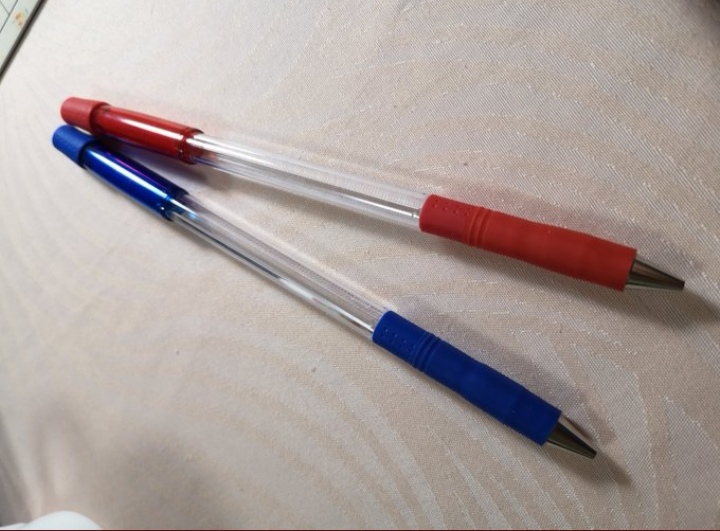

400¥ G3

The 400¥ G3 is a personal mod made by FPSB modder, VoreTex. The mod's name was based on the price of the parts in Japan.

Construction

Parts needed

List from the pm.pm:

• 2x G3 (barrel, grip, backplug, and plastic tip)
• 1x Signo DX (tip and grip)
• 2x Pilot Supergrip.G (cap and front part)
• 1x Pentel e.ball (grip and clicker)

Additional Items

• Tape
• An insert

Text tutorial

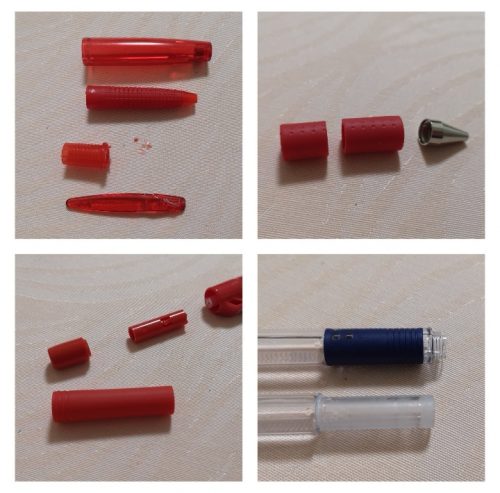

Preparation

1. Cut the clip of the Supergrip.G cap.
2. Cut the screw thread of the Supergrip.G front part.
3. Cut the Signo DX grip at the end of the 4th dimpple.
4. Prepare the G3 barrel by filing the square and front bump.

Assembly

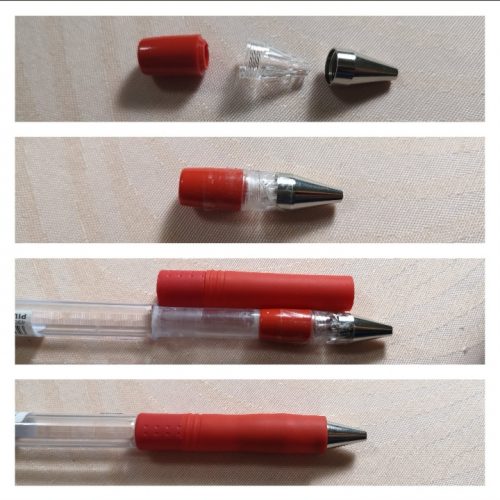

Front side

1. Stack the parts like this: E.ball clicker (big side), G3 plastic tip, and Signo grip. Wrap it in tape.
2. Put the grips on the G3 front in this order: Signo Dx (smaller section) and Eball (Stripe side first) (the Eball grip should cor the tipstack).

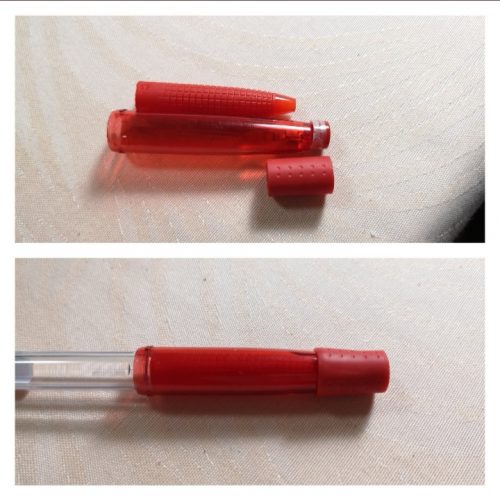

Cap side

1. Wrap some tape around the G3 backplug, then put it on the Supergrip.G cap.
2. Add the longer section of Signo DX grip on the Supergrip.G cap.
3. Put the Supergrip.G front part into it's cap.
4. Add tape on the G3 body then connect it to the Supergrip.G cap.
