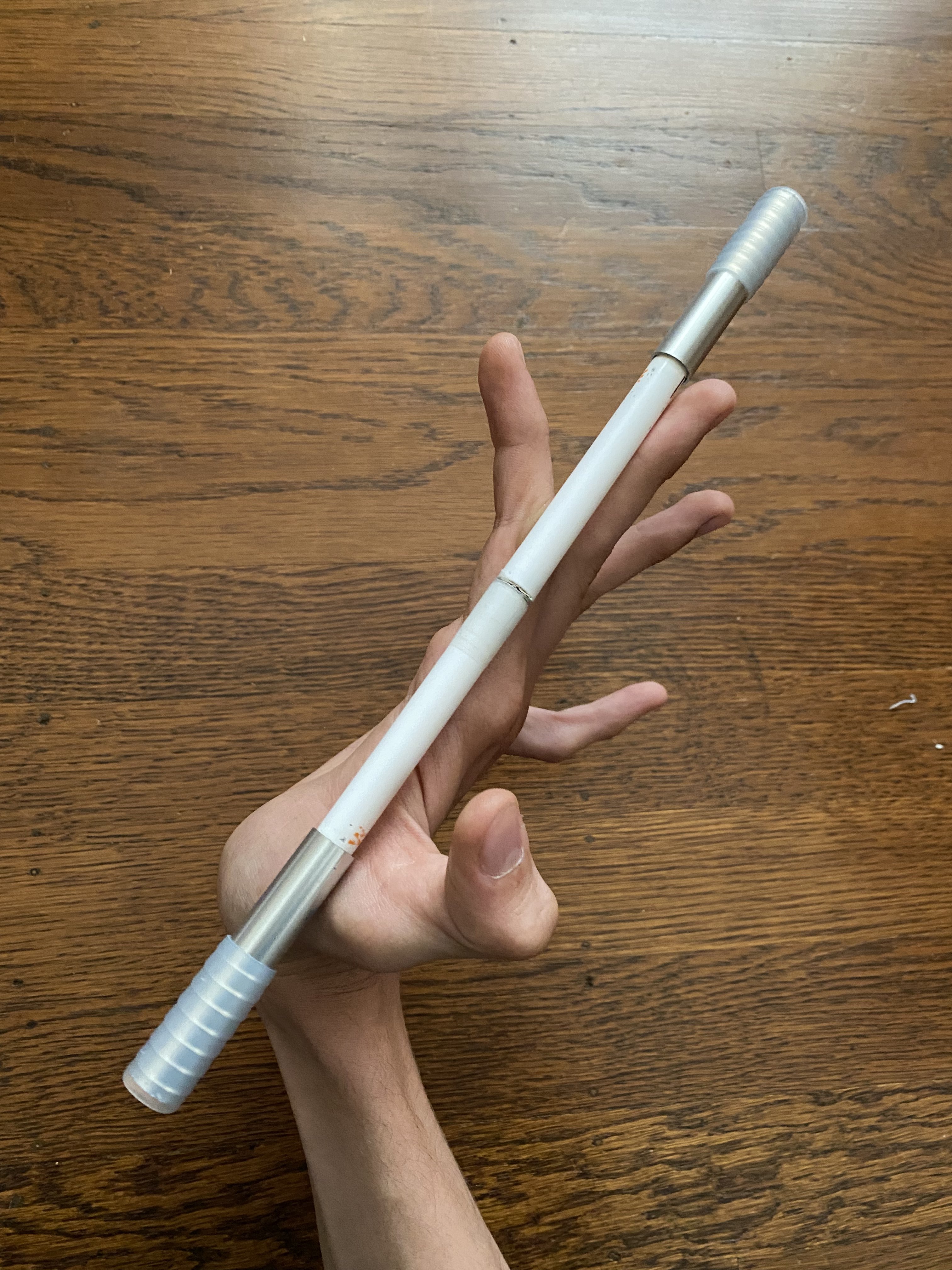

Tilt Whiteboard Marker Mod

The Tilt Whiteboard Marker Mod is a double-sided technical-linkage-oriented mod made by Tilt.

Construction

Parts needed

List from video below:

• x2 Daiso Whiteboard marker (2 body)
• x2 Pilot Opt Ballpoint Pen (Tips and outer body)
• x1 Pilot SuperGrip (Grips)
• x2 Amazon basic cushion grip pens (2 grips)
• x1 pen+gear mechanical pencil (barrel) (Body)

Additional Items

• Tape

Text tutorial

1. Empty both Daiso whiteboard markers and remove their front assemblies. Wrap tape around the exposed front ends to fit the Opt barrel sleeves.
2. Remove the Opt ballpoint tips and outer barrel sleeves, the two Amazon Basics cushion grips, and the Pen+Gear mechanical-pencil connector barrel.
3. Cut two 2-stripe SuperGrip sections.
4. Stretch each cushion grip and fit it over the round-hole end of an Opt sleeve.
5. Fit a SuperGrip section around each Opt tip, then push that tip into the cushion-grip end of its sleeve.
6. Fit each completed sleeve onto a taped marker front.
7. Wrap tape around the connector barrel as needed and join the two marker barrels at their rear openings.

Video tutorial

Video tutorial by Tilt.
