RsG3 MX

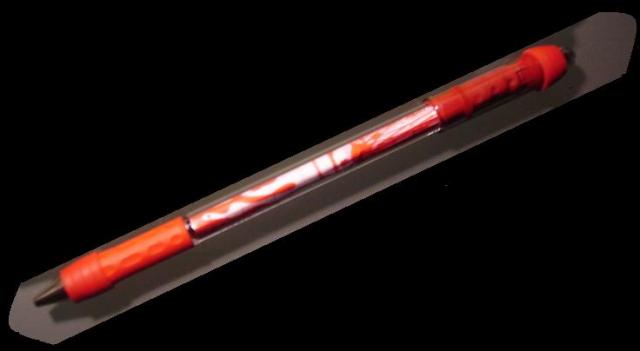

The RsG3 MX is a light, single-sided G3/RSVP hybrid mod by #Robin#, measuring 18.7 cm.

Construction

Parts needed

• 1x Pentel RSVP (all parts except cap)
• 1x Pilot G3 (tip and cap)
• 1x Anyball, SGM, or Profile grip
• 1x HGG (grip and tip)
• Optional decorative insert (type and placement unspecified)

Text Tutorial

1. Remove the RSVP cap and keep the other RSVP parts. Keep the HGG grip and tip, G3 tip and cap, and one grip type listed above. File the clip from the G3 cap.
2. Push the HGG tip into the bottom of the G3 cap with two Anyball rings to hold it in place.
3. Put the RSVP grip inside the G3 cap and fit this assembly over the RSVP backcap.
4. Place the HGG grip at the front of the RSVP barrel and fit the G3 tip over the RSVP front tip.
5. Add four rings of Anyball grip over the G3 tip and three or four rings over the G3 cap.
