PPM Mod

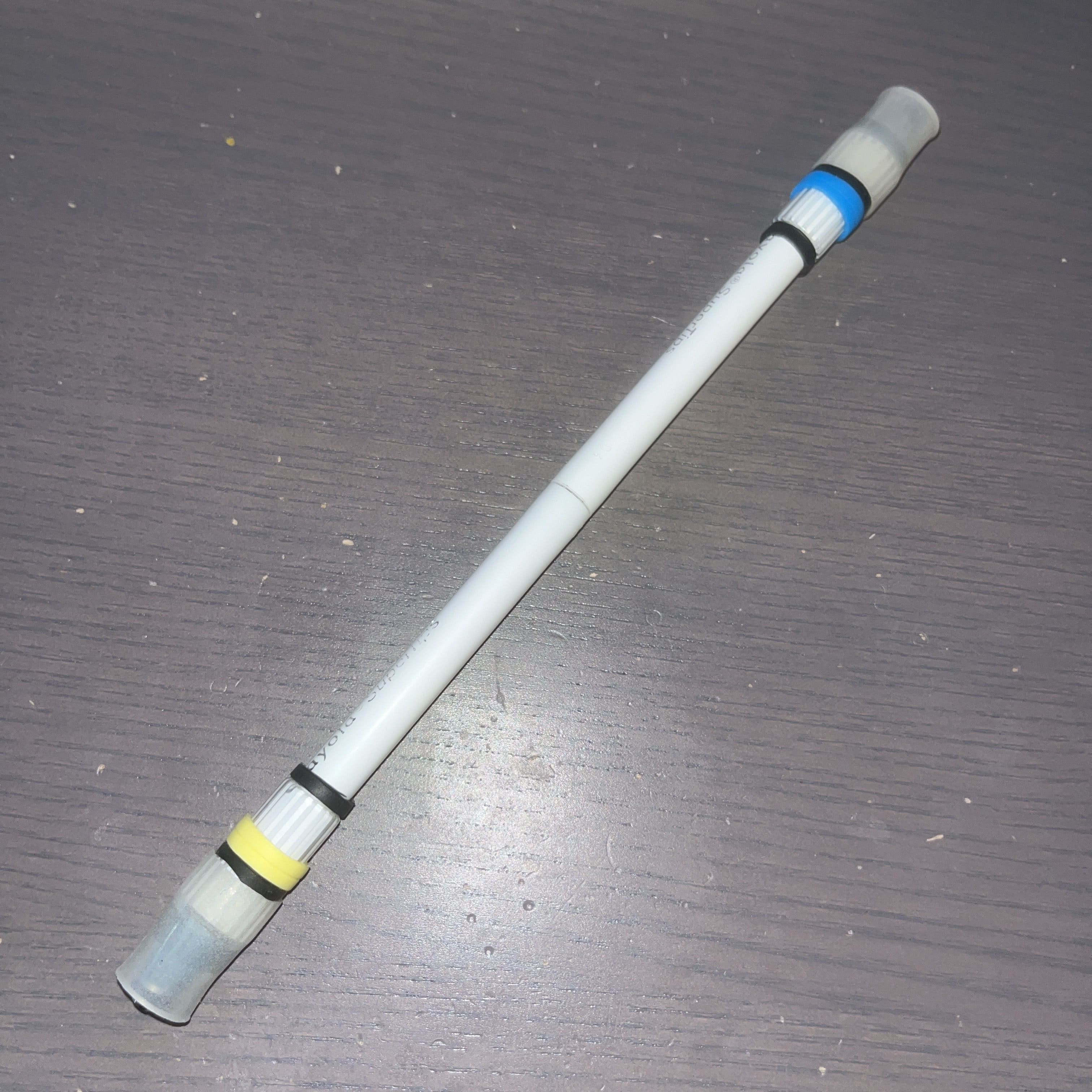

The PPM Modis a powertrick-oriented mod made by PPM.

Construction

Parts needed

List from video below

• 1/2/3x Anyball (grip) (2 grips for different colors)
• 1x Bic Round Stic (barrel)
• 2x Airfit mp (2 tips)
• 2x Thin Crayola SuperTips (2 barrels)
• 1x Pilot Nextage (outer barrel)
• 1x Pilot Dr. Grip (Grip)

Additional Items

• Tape
• Electrical tape

Text tutorial

This construction uses the creator’s demonstrated Nextage outer tube.

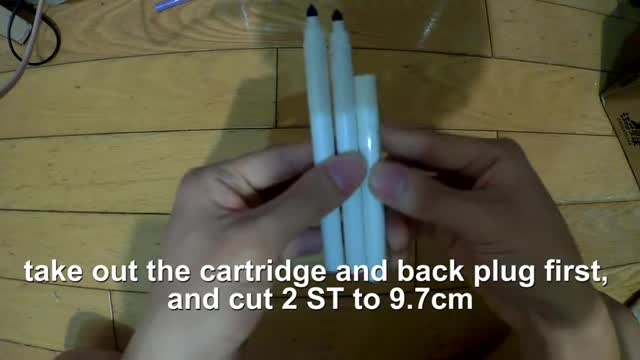

1. Empty two SuperTip barrels, removing the ink and backplugs. Retain 9.7 cm from the rear of each barrel.

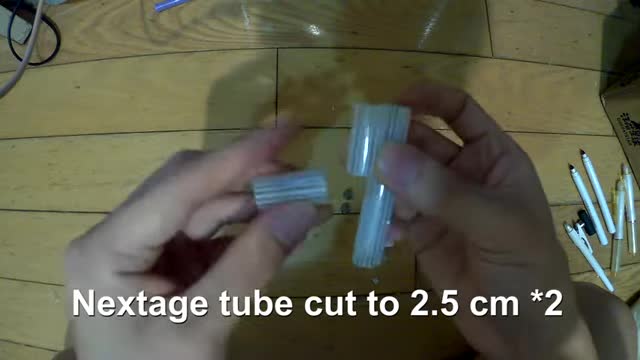

2. Cut two 2.5 cm sections from the Nextage outer tube.






3. Cut one Dr. Grip grip in half. Prepare two Airfit mechanical-pencil tips.
4. Cut two coloured 2-block Anyball sections and four black 1-block sections. Cut a 3 cm Bic Round Stic connector and a 2 mm × 14 cm strip of black tape.

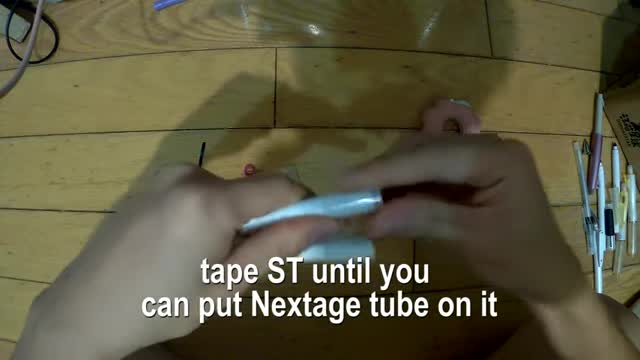

5. Wrap clear tape around each SuperTip outer end until the Nextage tube fits securely, then fit the tubes.

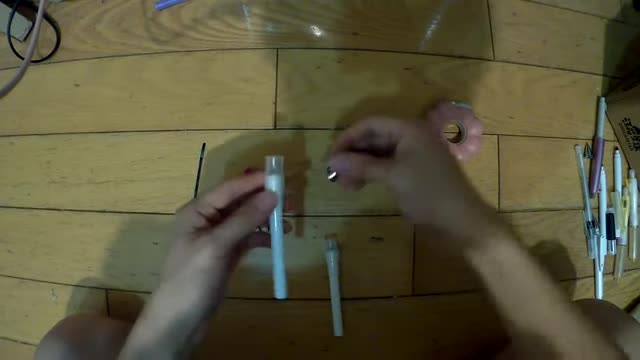

6. Fit a Dr. Grip half over each tube and insert an Airfit mechanical-pencil tip into the outer grip opening.

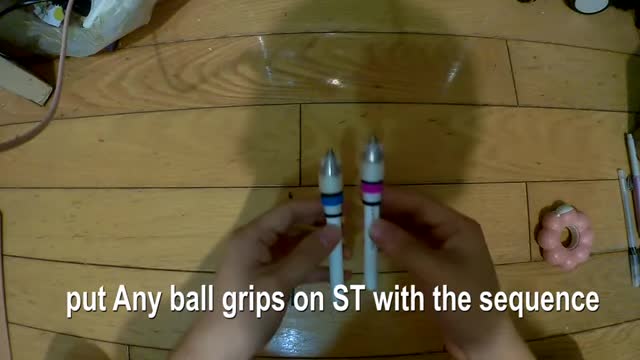

7. Fit the Anyball sections onto the SuperTip barrels, beside the outer assemblies, in this order from the centre toward each end: one black block, two coloured blocks, one black block.

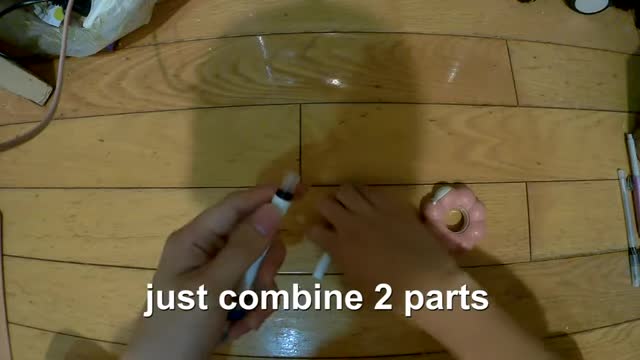

8. Insert half the Bic connector into one SuperTip centre opening. Wrap the narrow black tape strip at its centre, then join the second barrel and push both halves together.







Video tutorial

Video tutorial by PPM.
