Menowa* G3 (Old version)

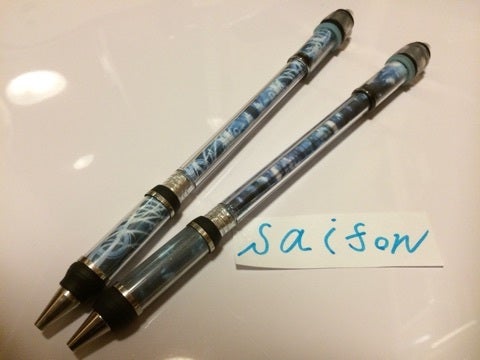

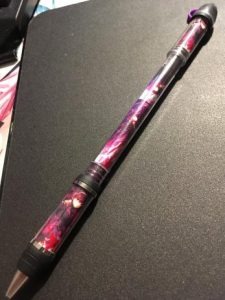

The Menowa* G3 is a personal mod made by Menowa*. As he no longer uses it, its name could be translated as "Former G3" (旧G3).

Construction

Parts needed

Parts list from Penmodding.pm:

• 1x G3 (barrel and cap)
• 1x Jimnie (cap)
• 1x Zebra Airfit LT GEL/Ballpoint (tip)
• 1x Dong-A Anyball (grip)
• 1x Pilot Dr. Grip (grip)
• 1x Namae (back plug)
• 1x Muji Aluminum Pen (tip)
• 1x Pentel Color Twin (barrel)
• 1x Pilot G2 (barrel)
• 1x Pilot G1 (tip)
• 1x Pentel Hybrid Gel Grip (tip; for the Airfit LT Gel stack)
• 2x Zebra Airfit BA-9 (metal rings)

Additional items

• Tape
• An insert (or multiple)

Text tutorial

Preparation

1. Cut the clip of the G3 cap and remove the rubber stopper.
2. Prepare the G3 barrel, then sand down the front until it's possible to fit an insert under the G2 barrel when connecting.

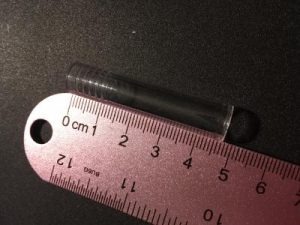

3. Cut the G2 barrel to 4.7 cm as shown in the source.

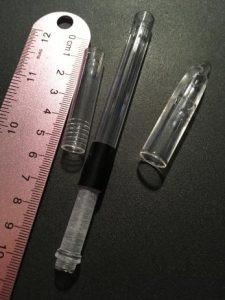

4. Shorten the Jimnie cap to 3.2 cm.






5. Cut off and retain the top of the Namae backplug.
6. Cut a 5 mm section from the middle of the Dr. Grip grip.
7. Cut the large rear ring and a three-ring Anyball section for the front assembly, plus one-ring and two-ring sections for the cap.
8. Cut a 2.3 cm Color Twin barrel section.

Assembly

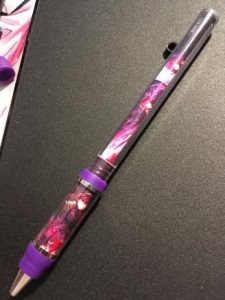

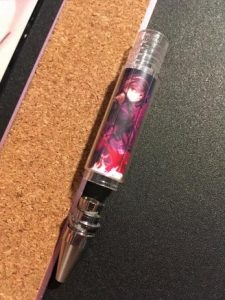

Front side

1. Fit the G2 barrel onto the G3 front with its threaded end facing outwards.






2. Add the big ring of Anyball grip, an Airfit ring, the Jimnie cap (Optional: Put an insert underneath), then another airfit ring.

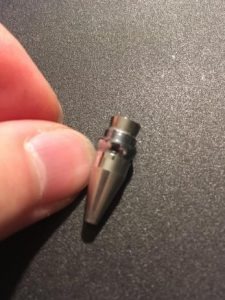

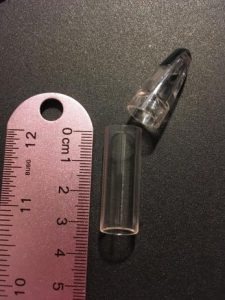

3. Stack the tips in this order if you use LT Ballpoint tip: Airfit LT bp tip, and G1 tip. The tip stack with LT Gel is: HGG tip, Airfit LT gel tip, and G1 tip.












4. Place the tip stack in the g2 barrel (it should fit snugly)
5. Fit the three-ring Anyball section at the front. Adjust the Jimnie cap for balance; the source shows 1 cm of the G2 threaded section exposed.







Cap side

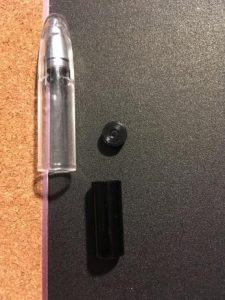

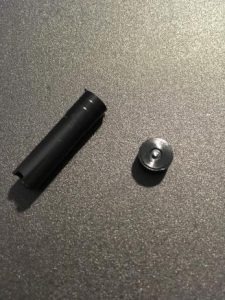

1. Place the Muji aluminum tip inside the g3 cap.






2. Place the Namae backplug and the cut section of ct barrel inside the cap (Optional: Wrap an insert around the Ct barrel).

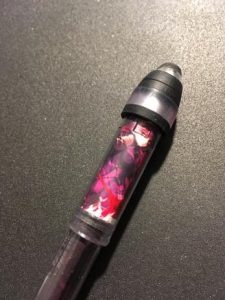

3. On the cap, fit these grips from the barrel toward the outer end: one Anyball ring, 5 mm of Dr. Grip grip, then two Anyball rings.






4. Add tape on the G3 body then connect it to the G3 cap.
