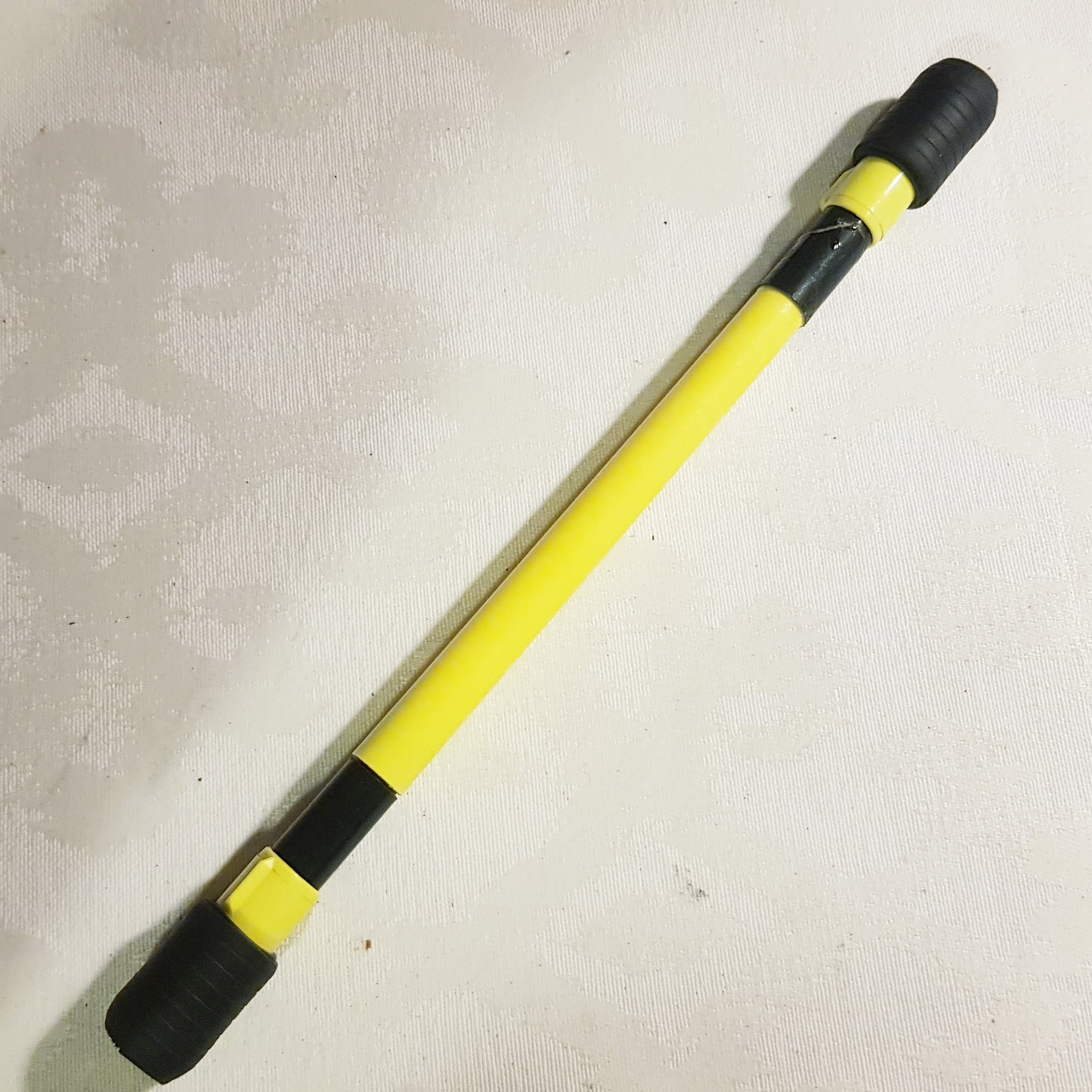

The IM* Hybrid is a double-sided mod made by FPSB modder VoreTex after a request from Gollumsk8 to combine a Menowa* Mod and an Ivan Mod.
It became popular after Gollumsk8's participation in World Tournament 17 where he finished 2nd.
Construction
Parts needed

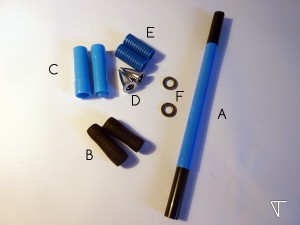

List from Penmodding.pm:[1]
- 2x Anyball (grip)
- 2x Pilot Dr. Grip HDG-50R (tips)
- 2x Pentel Color Twin (big caps)
- 2x unnamed Sailor sub grips (grips)
- 2x optional metal rings (0.8 g each; 6 mm inner diameter, 11 mm outer diameter)
- PEN’Z GEAR rings can substitute.
- 2x Crayola SuperTips (barrels for a 17 cm Ivan-style base)
Text tutorial

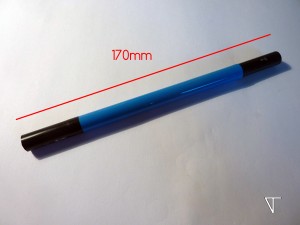

- Empty both SuperTips barrels. Prepare a 17 cm Ivan-style base using one whole barrel with a cut SuperTips extension at each end.

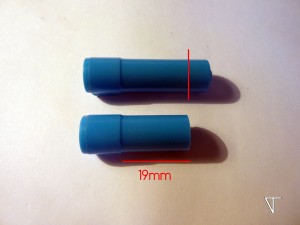

- Cut each large Color Twin cap at the marked line, keeping 19 mm of its thinner section.

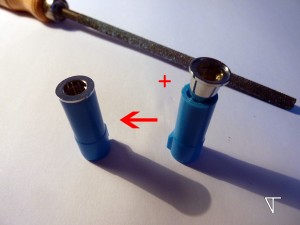

- File the inside of each cap until a Dr. Grip HDG-50R tip fits, then insert the tip.

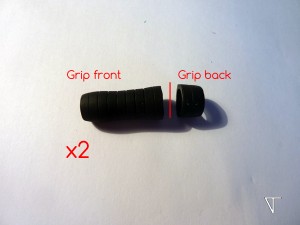

- Cut a nine-ring section from the front of each Anyball grip.

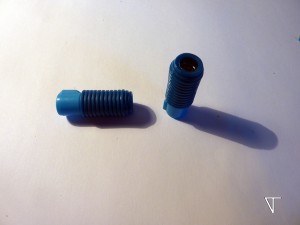

- Stretch the Sailor substitute grips with pliers and fit them over the Color Twin caps. The source recommends the firmer substitute that feels more like plastic than silicone.

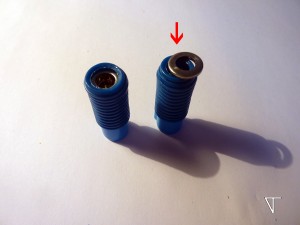

- Optionally insert one metal ring into each grip. The source uses 0.8 g rings with a 6 mm inner diameter and 11 mm outer diameter; PEN’Z GEAR rings can substitute.

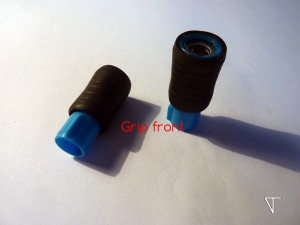

- Fit a nine-ring Anyball section over each Sailor substitute grip, with its front end toward the cap’s clip side.

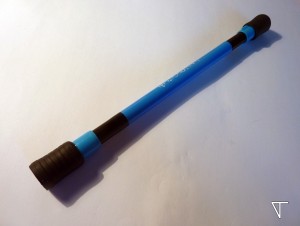

- Attach the completed caps to both ends of the Ivan-style base. Use tape for a secure fit and adjust the balance with tape if needed.
Video tutorial
Video tutorial by VORE-TEX.
