GJH

The GJH is a single sided writable mod made by PDS spinner Mr.LSC. Its name is an acronym of the 3 parts used.

Construction

Parts needed

List from the FPSB V2:

• 1x G3 (barrel, tip, grip and cap)
• 1x Jedo (pencil mechanism and tip)
• 1x HGG (tip and grip)

Additional Items

• Tape
• An insert
• Glue

Text tutorial

Preparation

1. Remove the G3 grip without cutting it.
2. File down the bump at the front of the G3 barrel.
3. Cut off the threaded front section, including the bump.

Assembly

Front side

1. Insert the Jedo pencil mechanism through the rear of the prepared G3 barrel.
2. Screw the Jedo tip onto its mechanism from the front. Glue the tip to the front of the G3 barrel, keeping the moving mechanism free of glue.

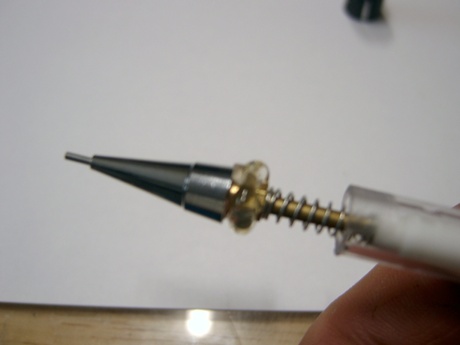

   Jedo tip assembly.



3. Fit the HGG tip over the Jedo tip and add the HGG grip. Glue the HGG tip to the Jedo tip if needed.

Cap side

1. Insert the G3 tip and G3 grip into the G3 cap, in that order.
2. Wrap tape around the rear of the G3 barrel and attach the cap.
