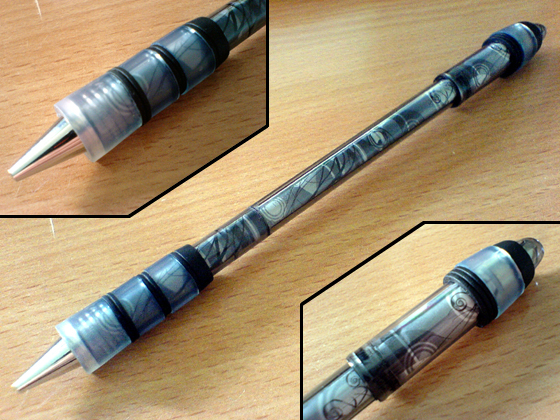

F1r3Fly G3

The F1r3Fly G3 is a single sided mod that is noteworthy for its difficult construction and unique aesthetic appeal. Due to needing to sand the front of the mod, it is very fragile and prone to breaking if dropped. For this reason it's usually made as a demonstration of modding ability and not as a mod to spin.

Construction

List from the UPSB V5 wiki archive.^[1]

Parts needed

1x Metal G3 (everything except grip and backplug)
1x G2 (body)
1x Grip Matic (tip)
1x HGG (tip, grip)
1x Dr. Grip (grip)
1x Sailor Gel (grip) or any pen with an opaque grip

Additional Items

File or sandpaper
Nail or toothpick
Electrical tape
Saw
Hot glue
Blade

Insert Dimensions

G2: 5.6cm x 2.8cm
G3: 8.4cm x 2.5cm
Cap: 3.7cm x 3.8cm

Text tutorial

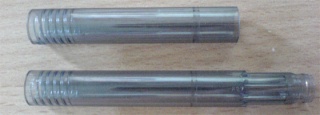

Unscrew the barrel of the G2 from the grip portion and cut it 5.6cm from the front.
Remove the cap, tip, grip, and backplug from the G3, and add your desired insert.

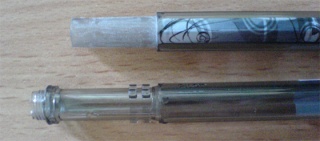

Cut off the front of the G3 from the rimmed portion. Evenly sand down the front until you can securely attach the G2 barrel from the back with an insert.
Clear the G3 inktube of ink and cut 7.4cm from the tip.
Unscrew the tip from the Grip Matic and remove the lead mechanism inside the tip. Glue the tip onto the G3 inktube.
Remove the grips from the Dr. Grip and the Sailor Gel.
From the lip of the Dr. Grip grip, cut 3 sections with these lengths respectively: 1.3cm - 0.8cm - 0.7cm.
Cut 5 sections of the Sailor Gel grip. Two will each have two rings and three will each have three rings (2-2-3-3-3). You may make changes as you see fit.
Place the grip sections onto the G2 barrel. They should have this order: 1.3cm DGG - 2 Sailor - 0.8cm DGG - 2 Sailor - 0.7cm DGG - 3 Sailor.
Red indicates DGG length in cm, white indicates Sailor Gel rings
Insert the G3 inktube with the insert into the G2 barrel.

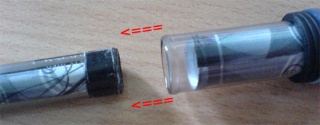

Carefully attach the back of the G2 onto the front of the G3. The G3 should fit between the insert and the inktube. Sand the G3 if necessary until a tight and secure fit.
Remove the clip of the G3 and the rubber stopper inside. Sand down the remaining protrusion of the clip until it's level with the rest of the cap.
Remove the tip and grip from the HGG and cut 0.5cm from the grip.

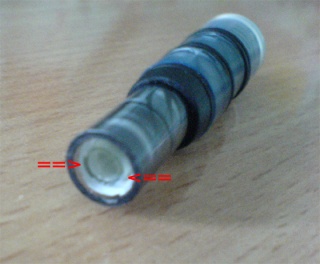

Insert the G3 tip into the cap. Wrap the longer section of the cut HGG grip with an insert and push it into the G3 cap.
Insert the HGG tip and grip into the cap, inside the longer HGG grip, and push it all the way in until the rattling stops.
Cut 1cm of Dr. Grip grip and place it between the remaining Sailor Gel grip sections onto the G3 cap.
Wrap a thin layer of electrical tape on the back of the G3 barrel and attach the cap onto it.
