Dentoru Emboss

Dentoru Emboss
Creator	Dentoru
Style	Double Sided
Length	~21cm
Weight	~18g
COG	COP

Dentoru Emboss is an adjustable mod made by Dentoru. It was created to emulate the look and feel of the Menowa* Reimei but on an Emboss body.

Construction

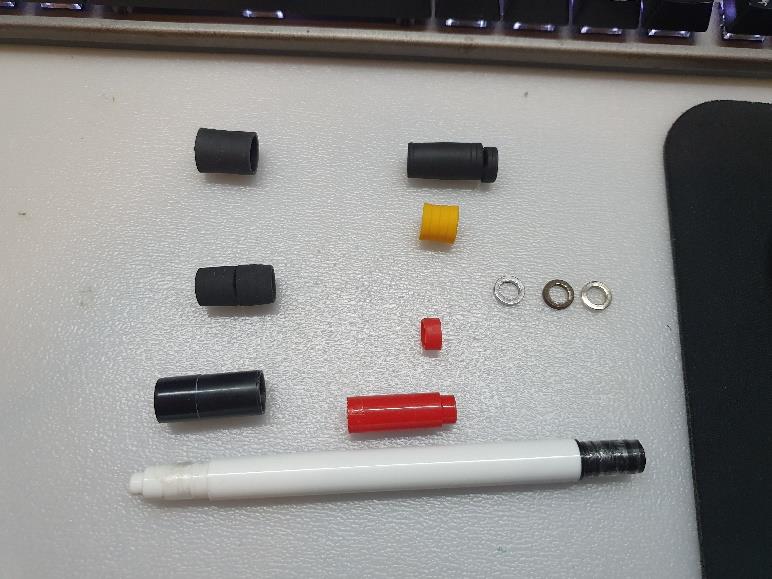

Parts needed

• 1x Emboss (Body, backplug)
• 2x Giotto Turbo Maxi (Two bodies)
• 2x 2ballpen+sharpen or can be subbed with Zebra Z-Grip (Two grips)
• 4x Anyball (Two grips)
• 2x Playcolor 2 (Two small caps)
• 2x Pilot G2 (Two grips)
• 1x Penzgear (2/4/6 Rings)
• 1x Pentel Hybrid Gel Grip or Pentel RSVP or similar (Thin grip).
• Tape (Original uses cellophane tape)

Text tutorial

1. Cut 7 ring section from the back of two Anyball grips (4-7)
2. Cut 4 ring section, two rings away from the front of two Anyball grips (2-4-5)
3. Cut 4 rings off the G2 grips, keep the large part
4. Cut 3cm of the Giotto barrels from the back end
5. Cut two 3mm sections from your thin grip
6. Cut two 3cm sections from the smooth part of the 2ballpen+sharpen grips
7. Clean and empty Emboss
8. Put the backplug back into the Emboss

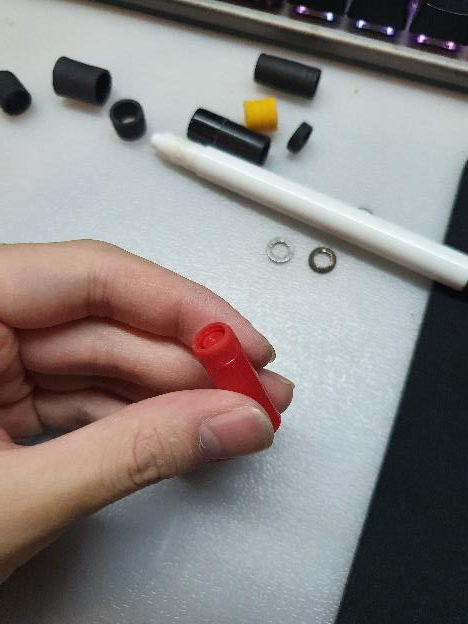

9. Place a thin grip section on the front of a PC2 small cap






10. Put the G2 grip, cut-side first, onto the front of the PC2 cap leaving 1cm of the cap exposed

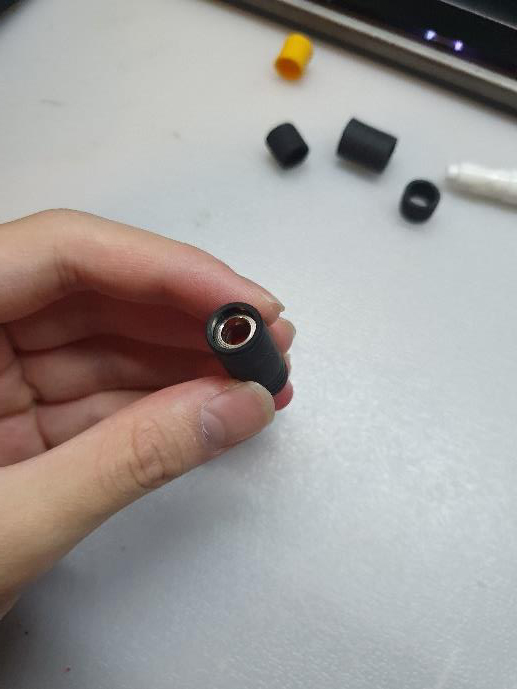

11. Push 1-3 penzgear rings into the G2 grip

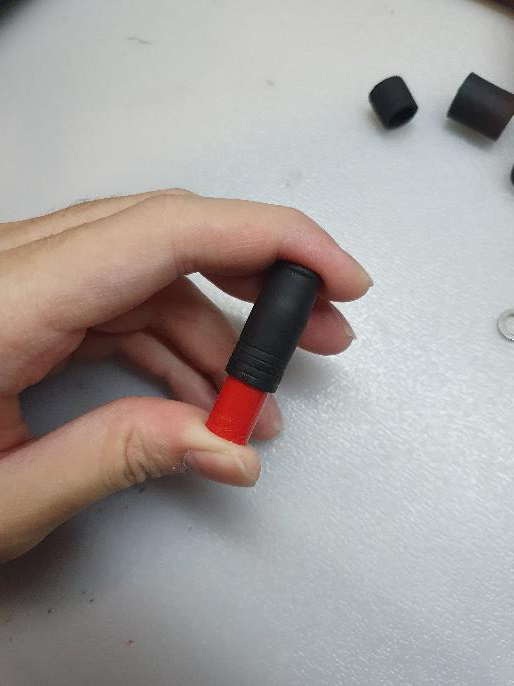

12. Place the package into the Giotto barrel from the back end

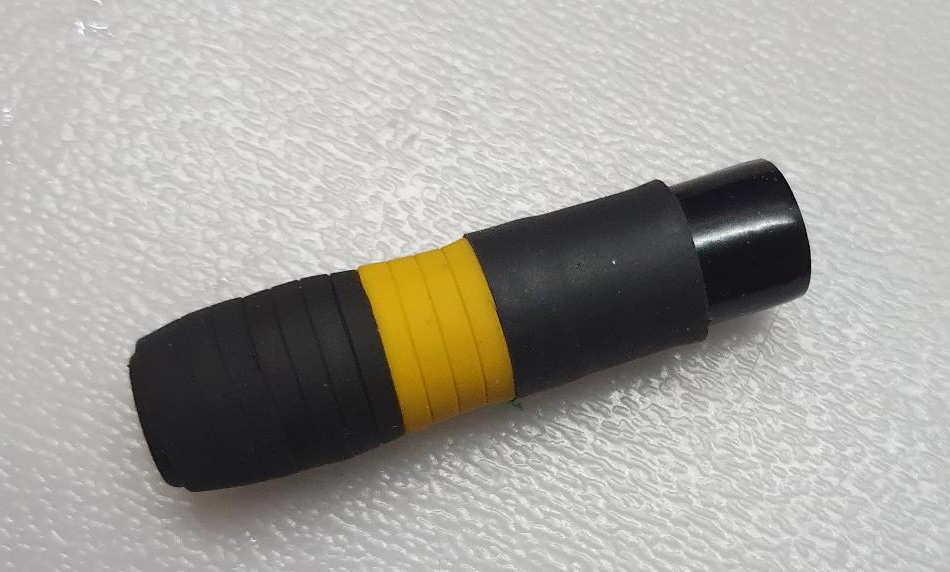

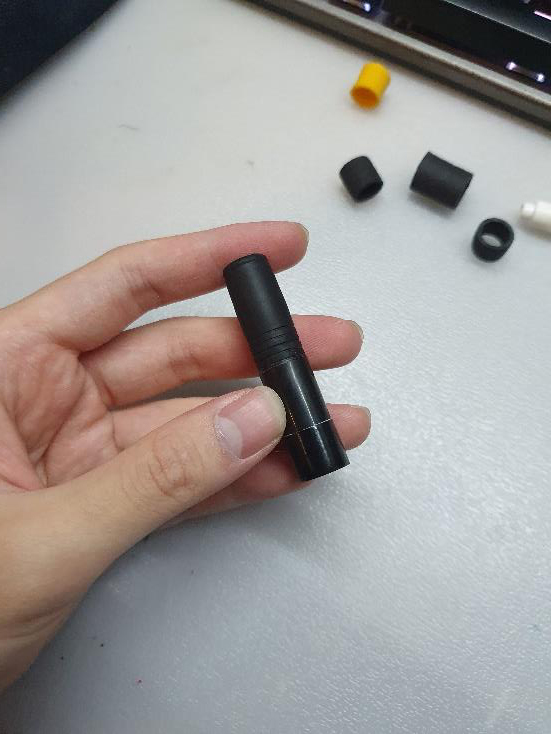

13. Put 7 section Anyball, 4 section Anyball, and 2ballpen+sharpen section onto the package






14. Repeat steps 9-13 to make a second package
15. Wrap tape around the Emboss front and backplug until the packages fit onto the ends snugly
16. Push the packages onto the Emboss
