The 台制戰彈 is a double sided mod made by TWPS spinner Joey. The name can be roughly translated as "Taiwan-made Warheads".
Construction

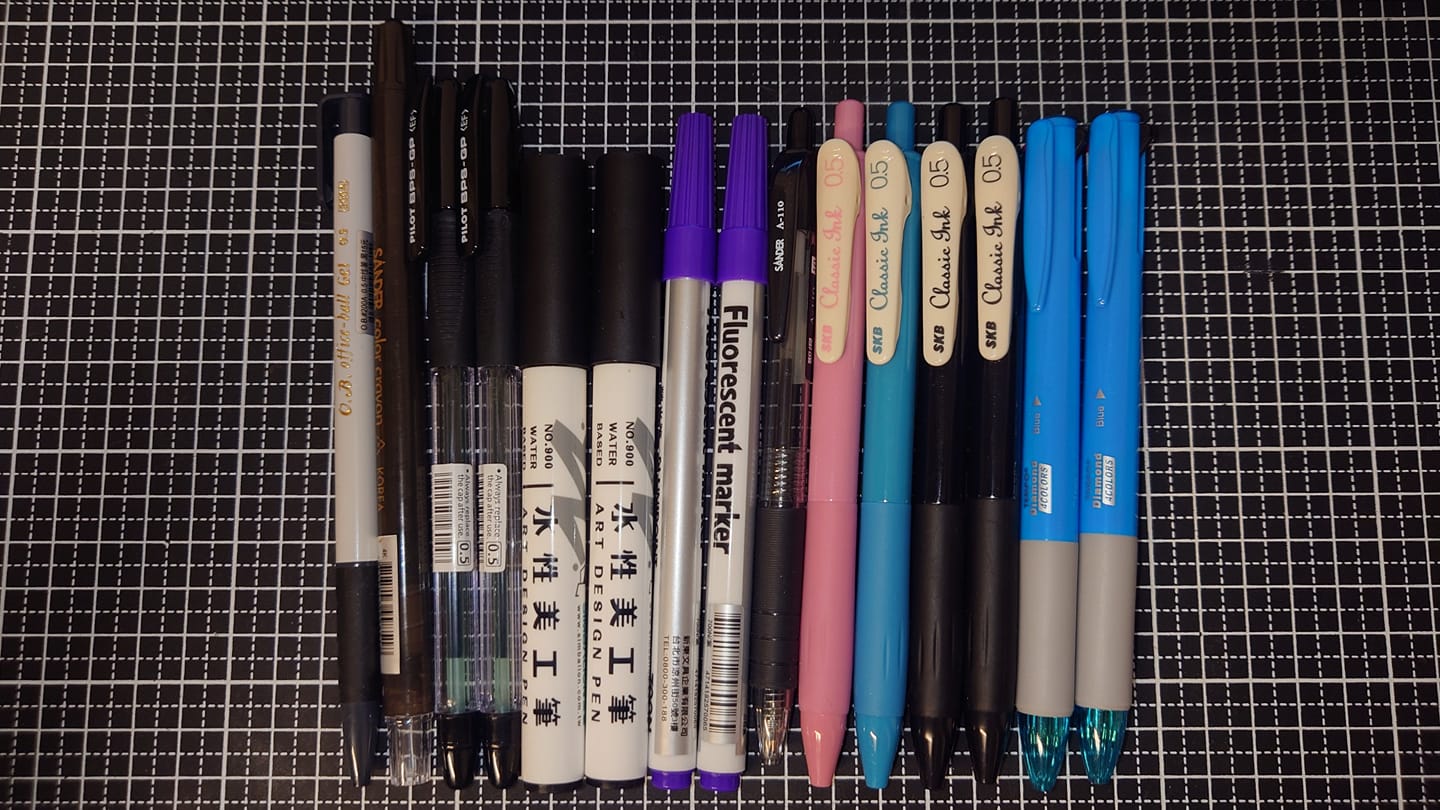

Parts needed
List from Joey's post in the TWPS penmodding grop on Facebook:
- x2 雄獅 NO.900水性美工筆 (body and cap)
- x2 700N (caps)
- x4 SKB G-2506 (grips)
- x1 Sander A-110 (grip)
- x2 Pilot BPS-GP (tips and grip)
- x1 Sander B-1701 (body)
- x1 Tempo三色筆 x 2 (grip)
- x1 O.B office-ball Gel (grip)
- x2 10x10 mm Neodymium magnet
- x2 8x5 mm Neodymium magnet
Additional Items
- Tape
Text tutorial

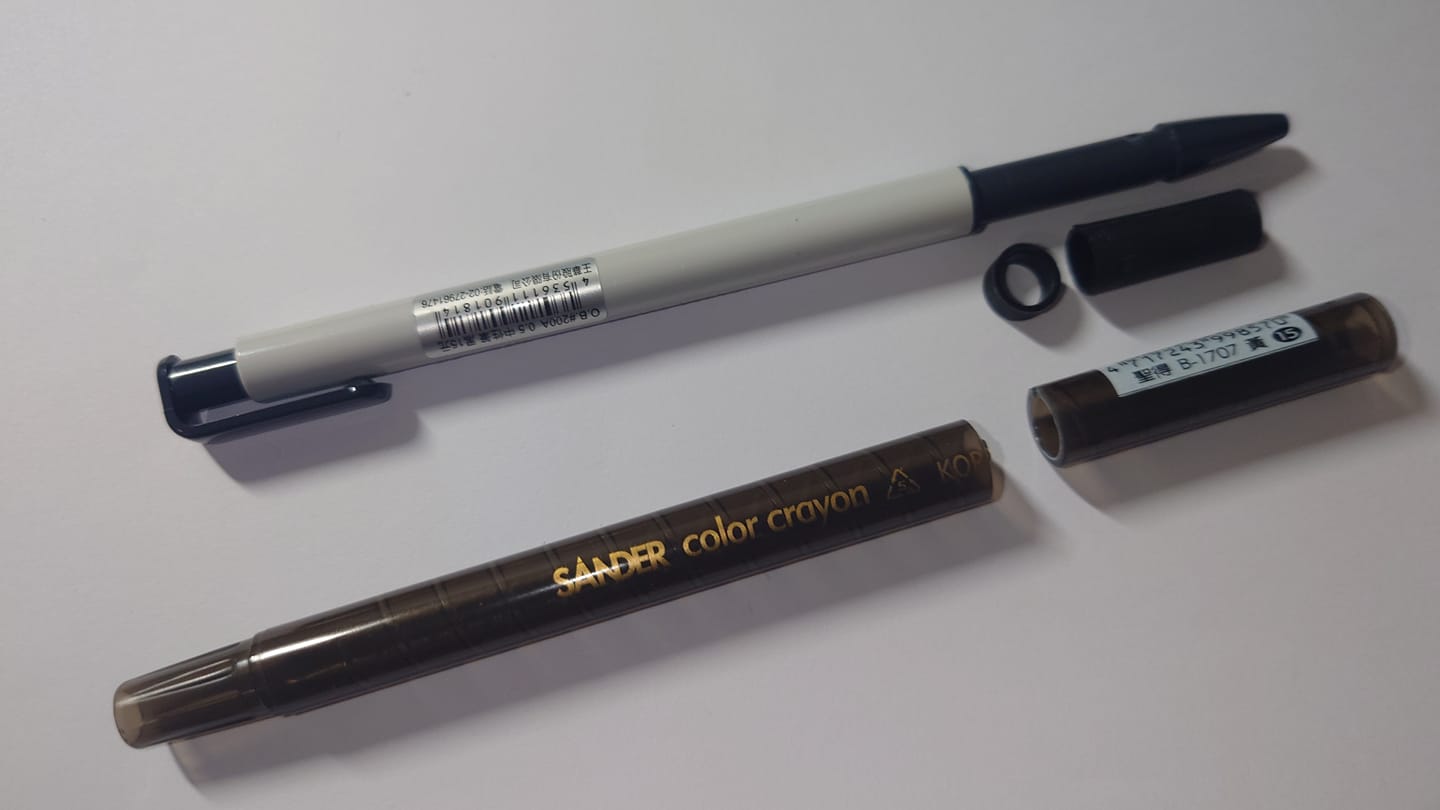

Preparation
- Cut the front of the 雄獅 NO.900 pen.
- Cut 0.8cm of the 雄獅 NO.900 cap.
- Cut 0.5cm from the back of the body and the cap of the 700N.
- Cut the B-1701 body to 4.5cm.
- Cut the O.B grip to 2x 0.4cm from the back.
- Cut the A-110 grip to 2.15cm.
- Cut 2x 11 blocks and 2x flat part of BPS-GP grip.
- Demagnetize all four magnets.
- Cut the black G-2506 grips to 1.6cm from the front and the back (the cutting ratio is 3-8-1)
- Cut the colored G-2506 grips to 1.7cm.
Assembly
- Wrap some tape around the 8.5mm magnet.

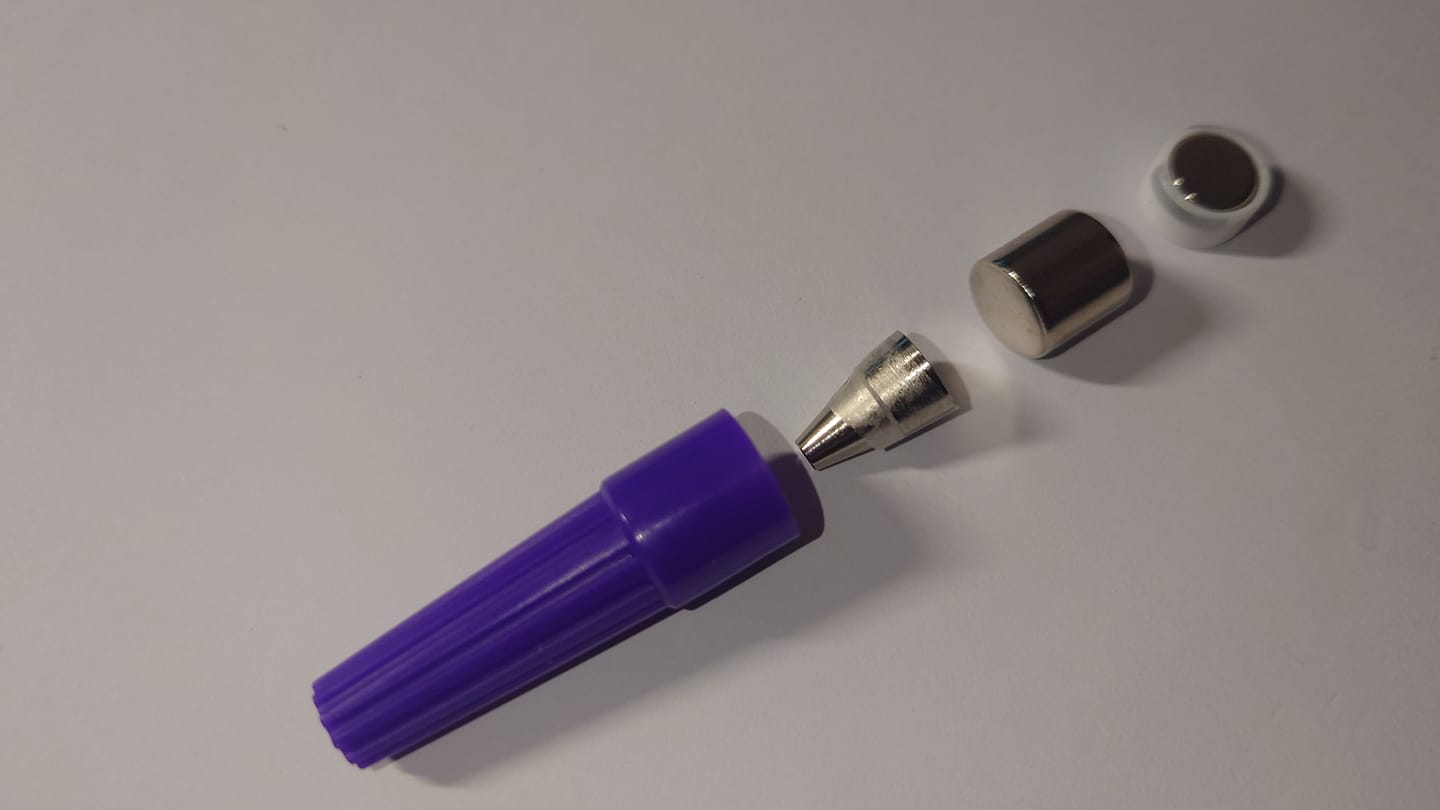

- Put in this order: the BPS-GP tip, the 10mm magnet and the 8mm magnet inside the 700N cap.
- Put the weight package inside the 雄獅 NO.900 body.
- Put 11 blocks of BPS-GP grip on the visible part of 700N cap.
- On the 雄獅 NO.900 body, add in this order: Part of No.900 cap, BPS-GP flat grip and the whole Tempo grip (the grip should be over the grip on the 700NN cap).

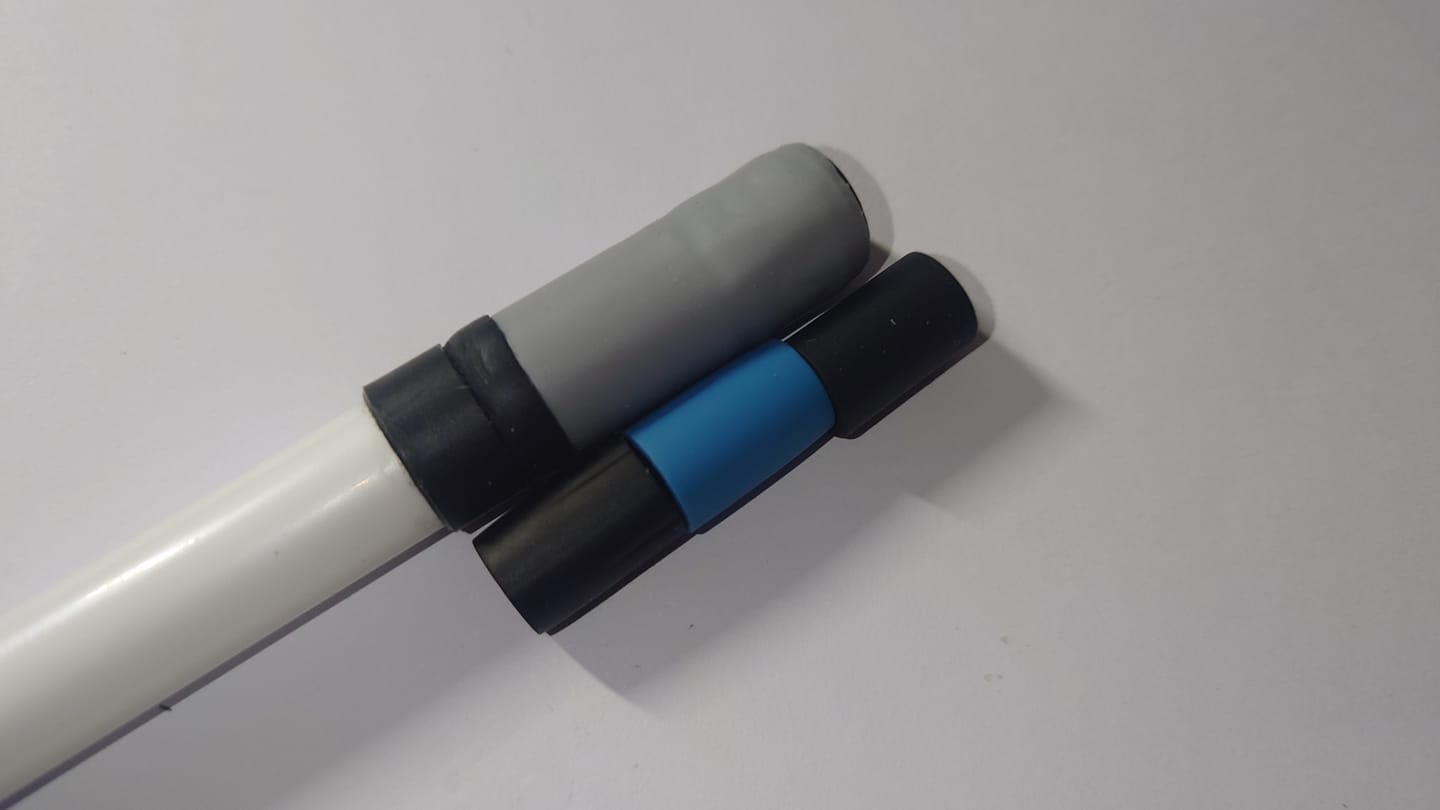

- Overgrip the flat BPS-GP and the Tempo grip with The G-2506 black grip, the G-2506 colored grip and another G-2506 black grip.
- Repeat on the other side.
- Put the A-110 grip on the B-1701 body and connect.
